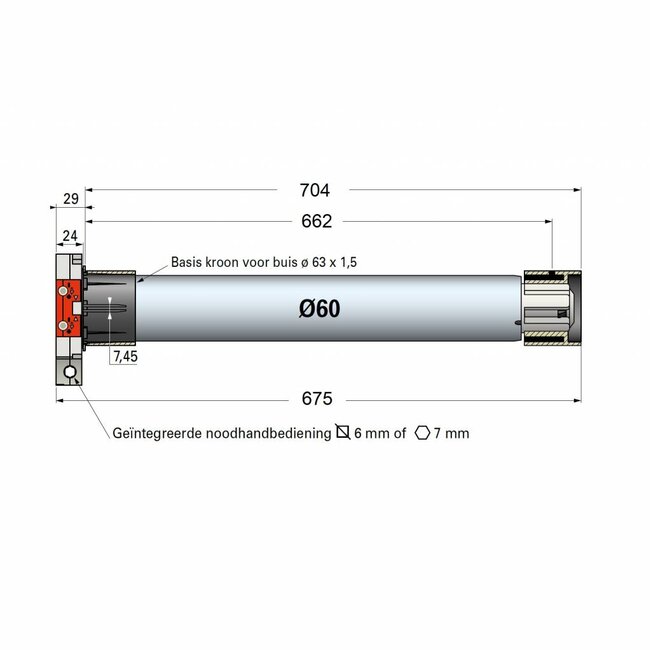

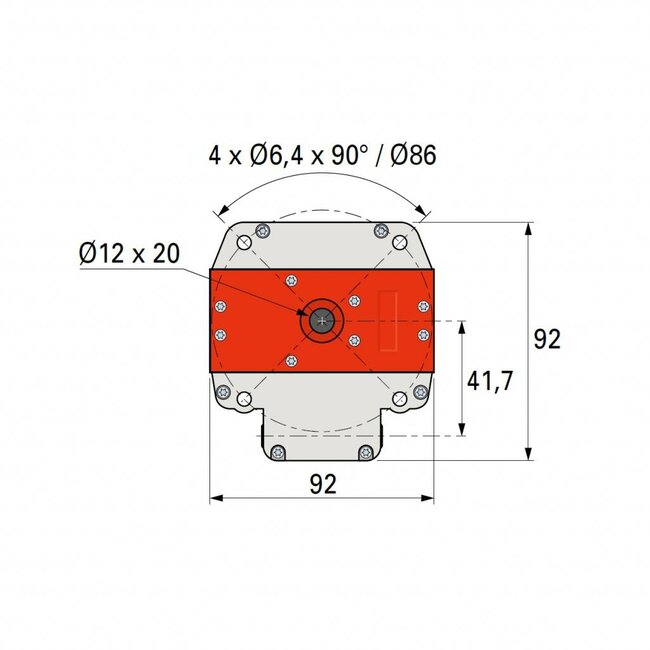

Simu T6 DMI tubular motor with emergency hand control

Simu T6 DMI tubular motor with emergency hand control

- supplied without motor support and adapter set
- supply voltage 230V - 50 Hz
- available in strengths from 40 to 120 Nm
- speed 12 rpm (60, 80, 100 & 120 Nm)
- speed 17 rpm (40, 55, 70 & 85 Nm)
- tubular motor with integrated emergency hand control
- emergency hand control on both sides
- adjustment on motor head
- applicable with relay boxes, standard switches and standard controllers
- fits a tube with a minimum inner diameter of Ø 63 mm
- capacity of final adjustment: 23 revolutions
- supplied as standard with a 4-wire white cable, length 2.5 m
- not suitable for continuous use
- maximum runtime 4 minutes
- proportional limit switch setting accessible from 2 sides
- simple fixing of drive flange by click system
- low noise level
- when fixing the adapter set always use safety clip + screw
- accessories Somfy LT60 tubular motors or Simu T6
