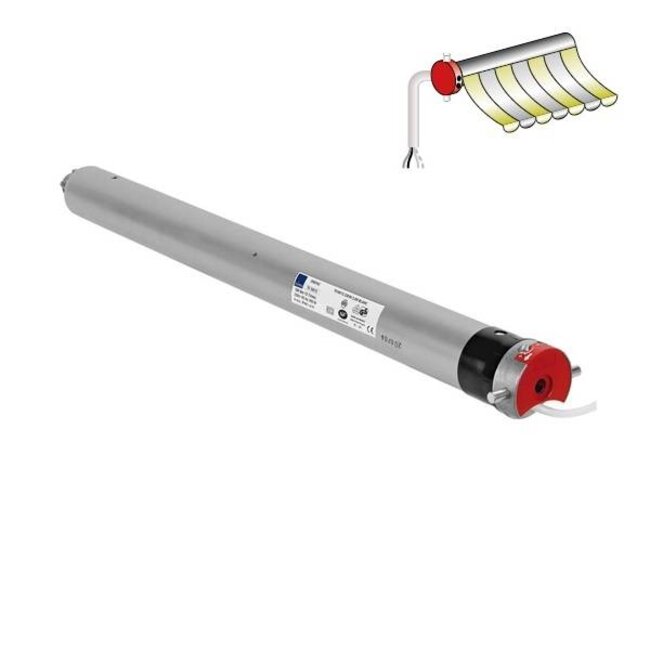

Simu T6 E SP tubular motor with fabric stretch compensation

Simu T6 E SP awning motor with automatic adjustment and fabric correction

- Supplied without motor support and adapter set
- supply voltage 230 V
- available in sizes from 60 to 120 Nm
- speed 17 rpm
- supplied with a 4-core VVF x 0.75 mm2 white cable, length 5 m.
- minimum tube diameter: 63 mm x 1.5 mm
- corded tubular motor for cassette screens with sufficient mechanical stops
- cassette always closes properly thanks to intelligent automatic correction function
- automatic fabric stretch compensation
- simple and quick adjustment with the T5E / T5 ESP adjustment switch, article 3717
- electronic adjustment without access to the motor head
- supplied with fixed cable
- applicable with all SIMU wired controllers
- final adjustment capacity: 3 min
- 3 motors can be connected in parallel
- accessories Somfy LT50 tubular motors or Simu T6
