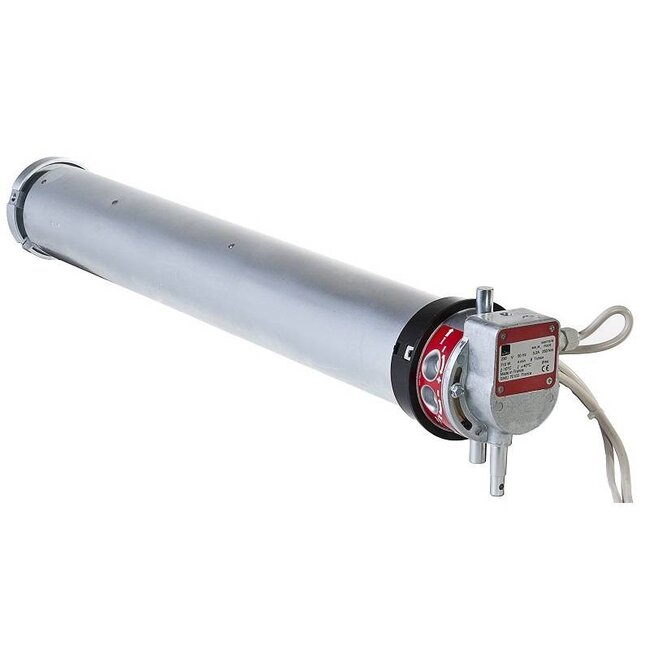

Simu T8 M roller shutter motor with emergency hand control

Simu T8 M - Tubular motor with emergency hand control

- supplied without motor support and adapter set
- power supply 230 V/50 Hz
- speed 8 rpm
- emergency hand control head tiltable by 45
- available in strengths from 130 to 450 Nm
- supplied as standard with a 4-wire grey cable, length 2.5 m
+ 2-wire cable for emergency operation
- adjustment on the motor head with countersunk adjustment pins
- final adjustment capacity: 17 revolutions
- shutter motor with progressive limit switch
- applicable with relay boxes, standard switches and standard controllers
- fits into a tube with a minimum inner diameter of Ø 101.6 x 3.6 mm
- integrated thermal protection
- shutter motor with integrated electromagnetic brake
- accessories Simu T8
- maximum operation 10 cycles per 24 hours
- maximum runtime 4 minutes
- protection class IP 44
- ambient temperature -10°C to 40°C and exceptionally -20°C to 60°C
- safety switch FDCS integrated in motor head
