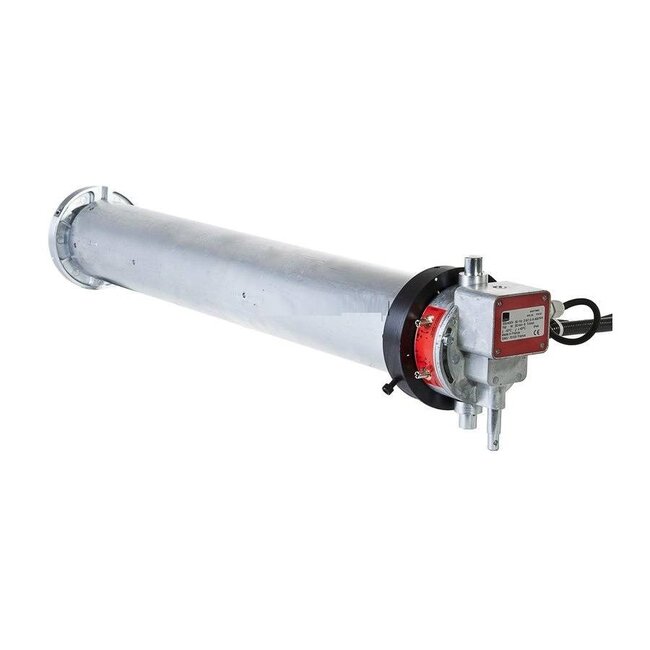

Simu T9 M tubular motor 400 V / 3 phase with emergency hand control

Simu T9 400 Volt/3 phase tube motor with emergency hand control for heavy Roller shutters

- supplied without motor support and adapter set
- available in sizes from 300 to 800 Nm
- power supply 400 volt / 3 phase
- cable 15-core VVF x 0.75 mm2, length 1 metre, colour white
- head adjustable 45°
- speed 8 rpm
- roller shutter motor is supplied with a fixed cable
- final adjustment capacity is 15/17 revolutions
- safety limit switch
- integrated thermal protection
- integrated electromagnetic brake
- maximum use 30 cycles per 24 hours
- maximum runtime 20 minutes
- adjustment on the motor head
- protection class IP 44
- ambient temperature -10°C to 40°C and exceptionally -20°C to 60°C
- safety switch FDCS integrated in motor head
- can only be used with a relay box for 400 V drive

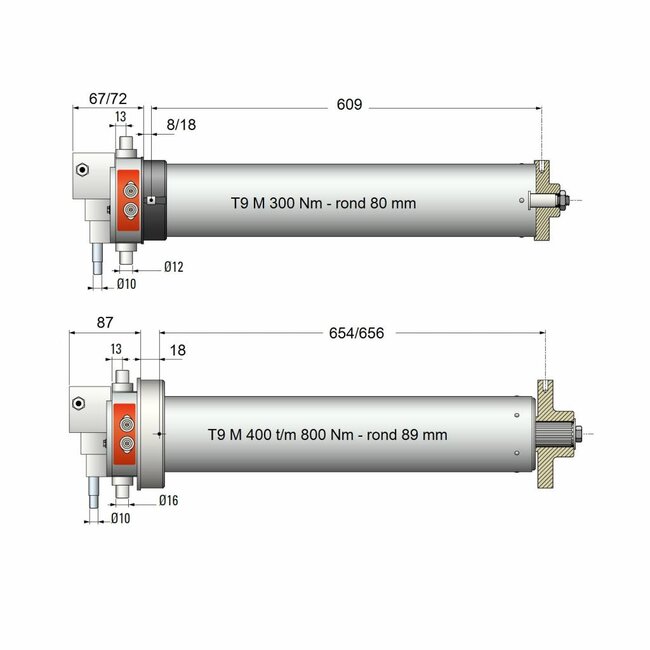

- fits a tube with a minimum internal diameter of Ø 133 x 3.6 mm
- accessories Simu T9
