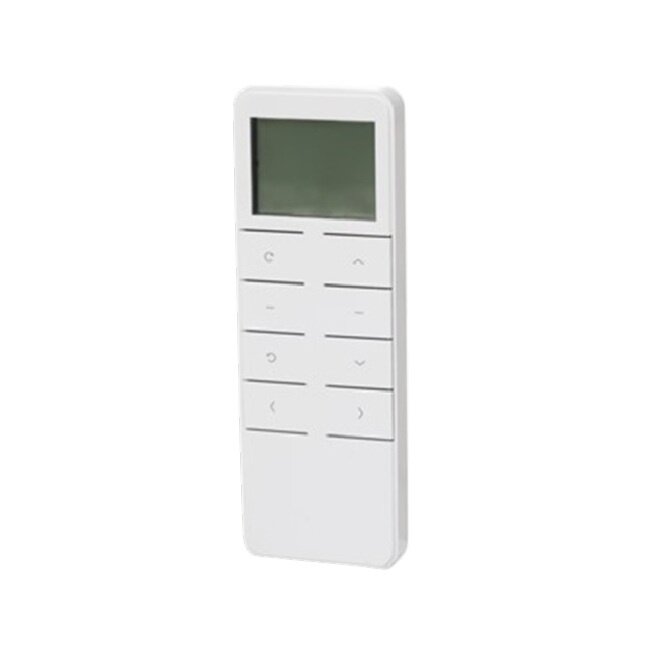

Brel THW2501 1-channel Tilt & Lift handheld transmitter

Brel THW2501 1-channel Tilt & Lift handheld transmitter

THW2501 1-channel handheld transmitter, the standard white 1-channel Tilt & Lift handheld transmitter is suitable for all types of BREL motors and has been specially developed for blinds.

- Handheld transmitter can be set mono or bi-directional
- suitable for Brel and Faher tubular motors with integrated receiver
- frequency 433 MHz
- 1 channel
- up-stop-down and 2 tilt buttons
- colour white
- battery type CR2450
- battery supplied as standard

Handheld transmitter switch from mono-directional to bi-directional
- remove battery from Transmitter
- press and hold P2 while inserting the battery

- the Handheld transmitter is in mono directional mode when it displays as below
- the LED on the Transmitter flashes 1x

- the Handheld transmitter is in bi-directional mode when it shows below
- the LED on the transmitter flashes 2x

If the Motor does not react, try the other mode
