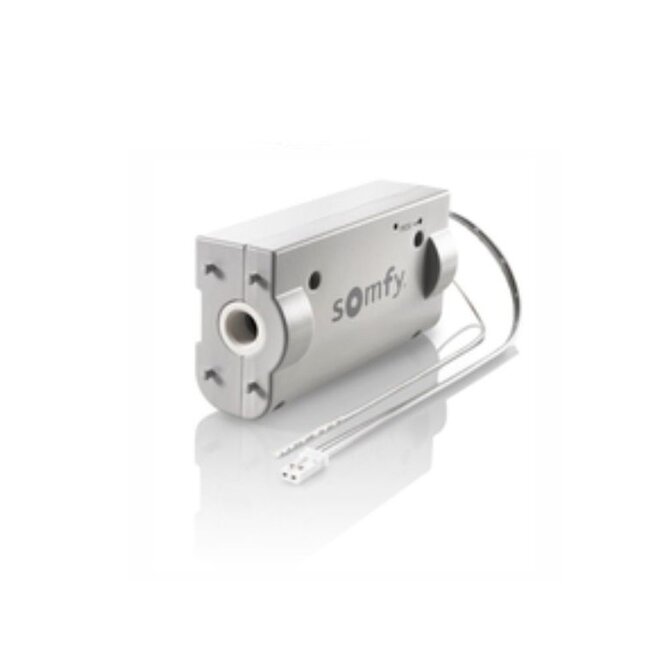

The Tilt Only 50 WF Zigbee is a compact and smart tube motor specially designed for tilting blinds. Thanks to the Zigbee radio protocol and the 12V DC power supply, this motor is ideal for applications with an external Li-ion battery. Read more.
The Tilt Only 50 WF Zigbee is a compact and smart tube motor specially designed for tilting blinds. Thanks to the Zigbee radio protocol and the 12V DC power supply, this motor is ideal for applications with an external Li-ion battery. Silent, precise and fully integratable into modern smart home solutions.
- torque 1 Nm
- rated speed 10 rpm
- adjustable speed 5 to 15 rpm, adjustable in steps of 1 rpm
- radio protocol Zigbee - 2.4 GHz
- power supply 12V DC, suitable for external Li-ion battery
- protection rating IP30
- electronic final adjustment
- operating temperature 0°C to 60°C
- insulation class Class III
- noise level <49 dB(A)
- battery indicator LED
- dimensions 103 x 49 x 31 mm
Quick and easy installation
Save installation time by performing installation, commissioning and adjustments directly via the TaHoma Pro app with clear step-by-step instructions.
Remote maintenance
Serv-e-Go enables remote maintenance, service and diagnostics. Fewer trips, more efficiency.
Comfort and integration
Specially designed for smooth and silent movement of blinds. Motor can be fully integrated into the system without visible adjustments.
Efficient solution
A reliable and intuitive solution for tilting blinds, suitable for professional projects where speed and reliability count.
Smart comfort
Smart Zigbee technology ensures privacy and glare protection, with quiet and precise control.
Compatible with TaHoma 3.0
Fully compatible with TaHoma switch. Control your blinds via the TaHoma 3.0 app, set scenarios and receive real-time feedback, at home or on the go.
Compatible with Somfy remote controls
Works together with the intuitive Somfy Handheld transmitters. Effortlessly set your blinds to your favourite position at the touch of a button.
Ease of use
An effective solution for smooth, quiet and intuitive operation of various types of window coverings.
Apart from this Motor, you will need the following products for operation:
- top box adapter set, article 5015 & 5607
- Axle/Shaft adapter if star-shaped (square often fits directly), article 5014, 5604, 5605 or 5606
- a separate 12V power supply and/or a rechargeable battery, article 5602 & 5603
