Selve Smarttimer Plus timer
Selve's Timer Smarttimer Plus is a simple Roller shutter timer with very low standby power consumption. Thanks to its Din dimensions of 50 x 50 mm, the Smarttimer Plus can be integrated into all standard switch series.
Daily and weekly programmes, random control and the astro function make the smart timers an easy-to-use yet comprehensive control for young and old alike
- power supply 230 V
- switching current 5 Ampere
- low power consumption 0.45 Watt in Standby
- protection class IP20
- permissible ambient temperature 0 to +55°C
- suitable for wall box Ø 58 mm x 40 mm
- long power reserve in case of power failure of at least 10,000 hours
- mounting has no fixing claws
- control panel dimensions 50x50x11 mm (wxhxd)

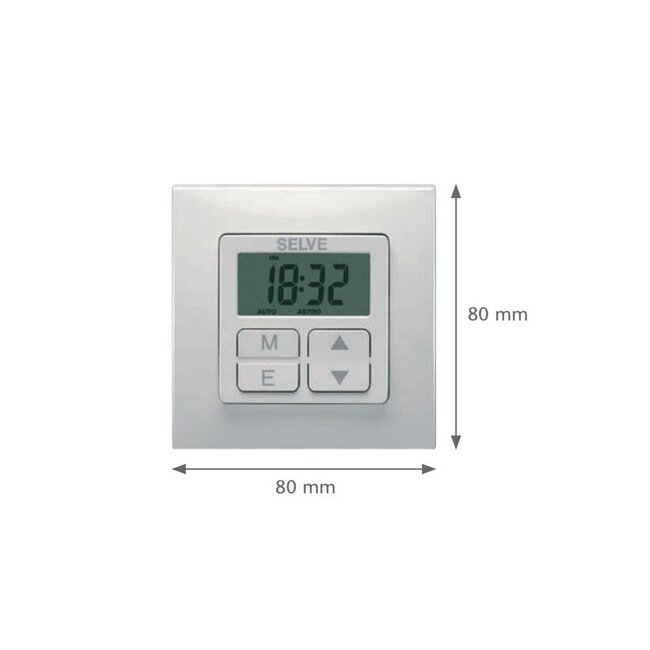

- window dimensions 80x80 mm (wxh)
- dimensions power supply section Ø 54 mm x 40 mm
- can be switched from manual to automatic mode at a single touch
- simple setting of individual switching times
- weekly timer programme, setting of individual switching times for each day of the week
- daily programme, simple setting for daily switching times
- switching times are executed in the 24-hour cycle
- with astro function for adjustment of switching times by the calendrical sunset
- automatic summer/winter time changeover
- random function, switching times shifted randomly every day
- time switch is supplied with single cover frame and operating instructions
