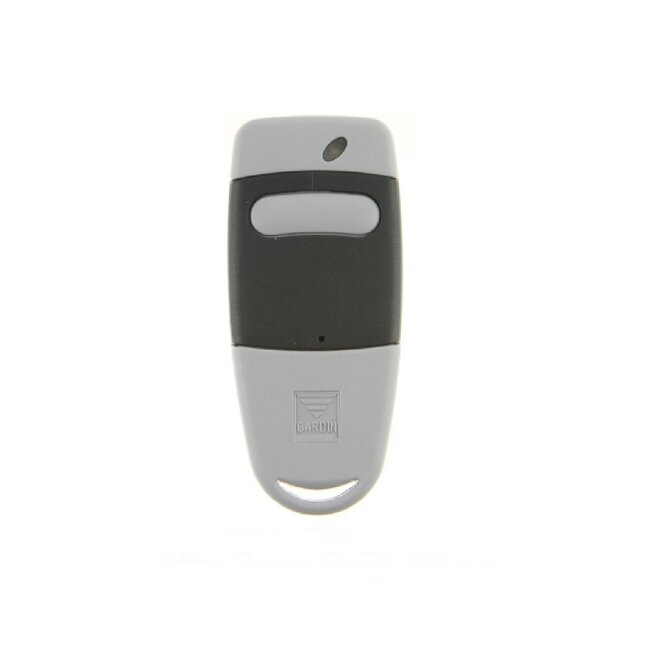

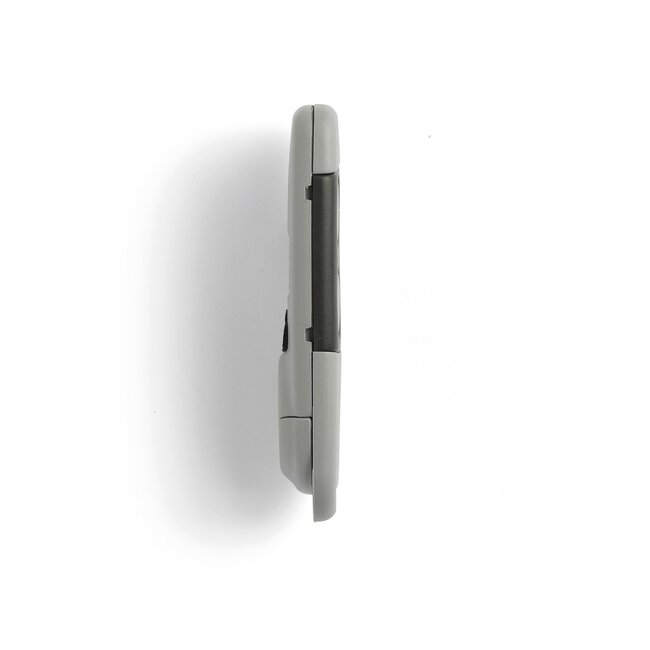

Cardin TXQ486100 1-channel handheld transmitter

Cardin S486 1-channel handheld transmitter

- 1-channel transmitter
- frequency 868 MHz
- battery 3 Volt CR2032
- range ± 100-150m
- dynamic security through Rolling Code
- keylock function adjustable, ideal as hold-up button
- dimensions 72x34x11mm

This transmitter is also called S486-TX1 or S486 QZ1

Transmitter can be installed directly on the receiver, see receiver manual.
You can also install it from transmitter to transmitter, just not near the receiver, this only works on receivers with type number: RCQ486100, RQM486200 & RSQ486200. This does not work on receivers with a display!
