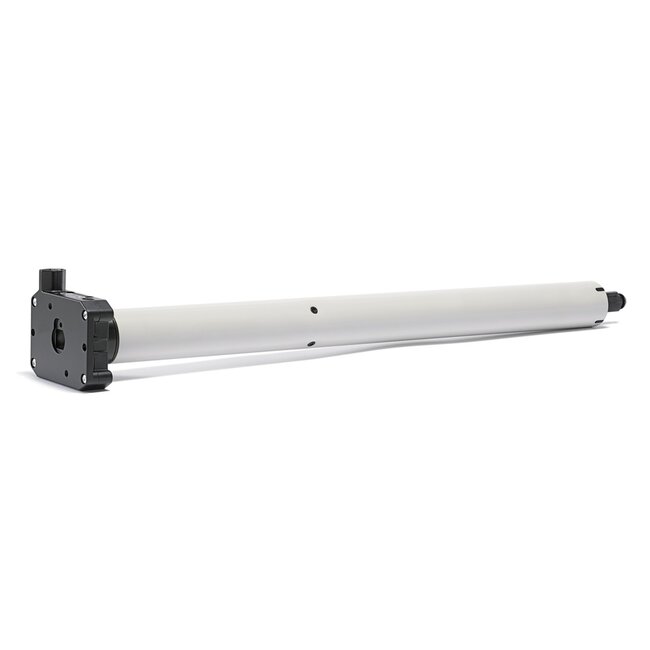

Elero VariEco L NHK tubular motor

The tubular motor of the VariEco L NHK series has an emergency manual operation and, with a diameter of 63 mm and a length from 563 mm, is suitable for roller shutters and sun blinds. These drives are available from 40 to 120 Nm, in 11 or 14 rpm. The tubular motor has a mechanical final adjustment.

- suitable for roller shutters and sun blinds
- Successor to Elero Type 11/4, 11/6, 11/8, 11/10 and 11/12
- Supplied excluding motor support and adaptation set
- tubular motor with a diameter of Ø 63
- mechanical final adjustment

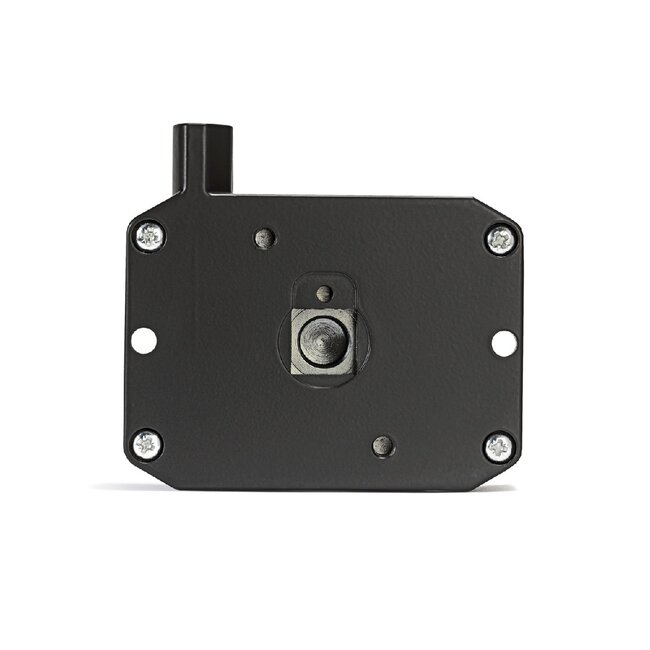

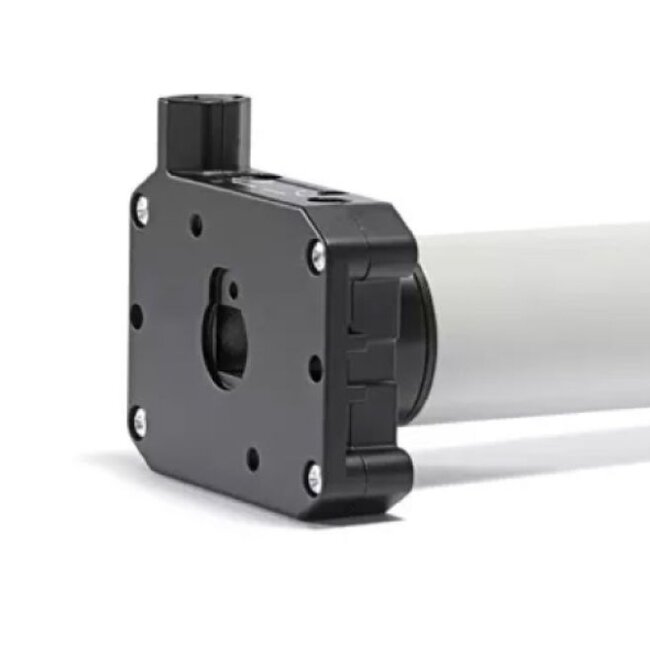

- end positions can be set on the motor head
- emergency manual operation (delivered excl. eye)
- tubular motor 230 V/50 Hz
- speed depending on power in 11 or 14 rpm
- available in 40 to 120 Nm
- range of the limit switches 40 turns
- protection class IP44
- 4-core white cable with a length of 2 meters
- tubular motor fits in a tube with a minimum diameter of Ø 70 mm
- parallel connection not possible
- not suitable for continuous use

- Elero VariEco L 40 NHK - 40 Nm - 14 rpm - 333 Watt - length 730 mm
- Elero VariEco L 60 NHK - 60 Nm - 14 rpm - 356 Watt - length 730 mm
- Elero VariEco L 80 NHK - 80 Nm - 14 rpm - 415 Watt - length 760 mm
- Elero VariEco L 100 NHK - 100 Nm - 11 rpm - 390 Watt - length 760 mm
- Elero VariEco L 120 NHK - 120 Nm - 11 rpm - 460 Watt - length 760 mm
