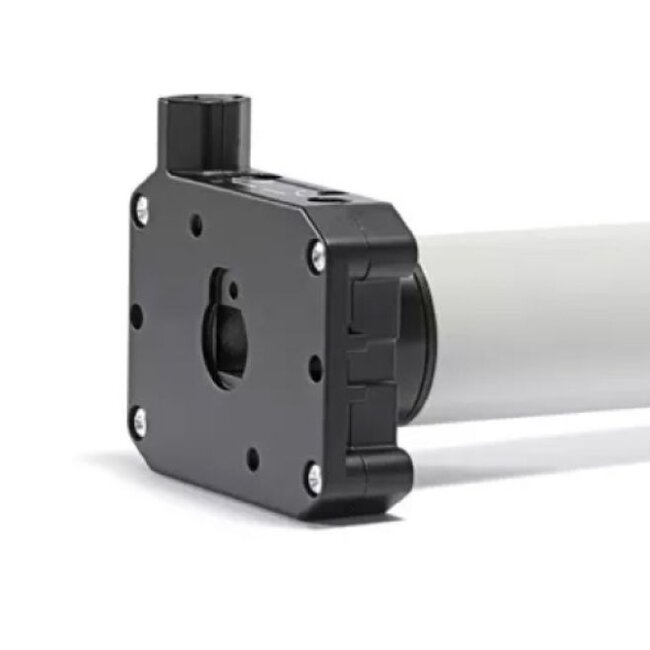

Elero VariEco M NHK tubular motor

Elero VariEco M NHK tubular motor

The tubular motor from the VariEco M NHK series features an emergency manual override and, with a diameter of 45 mm, is suitable for roller shutters with a single 8-sided axle/shaft of 60 or 70 mm. These drives have a torque range of 20 to 50 Nm. The tubular motor has a mechanical limit adjustment.

 - Suitable for roller shutters and awnings
 - Successor to Elero Types 9/2, 9/3, 9/4 and 9/5
 - Supplied excluding motor support and adaptation kit
 - tubular motor with a diameter of Ø 45
 - Mechanical end-of-travel adjustment
 - End positions can be set on the motor head
 - Emergency manual control (supplied without eye)
 - tubular motor 230 V/50 Hz
 - available in 20, 30, 40 and 50 Nm
 - speed of 14 rpm
 - limit switch travel: 40 revolutions
 - Protection class IP44
 - 4-core white cable, 2 metres long
 - tubular motor fits into a tube with a minimum diameter of 60 mm (octagonal) or Ø 63 mm
 - Parallel connection not possible
 - Not suitable for continuous use

- Elero VariEco M 20 NHK - 20 Nm - 14 rpm - XXX watts - length XXX mm
- Elero VariEco M 30 NHK - 30 Nm - 14 rpm - XXX watts - length XXX mm
- Elero VariEco M 40 NHK - 40 Nm - 14 rpm - XXX watts - length XXX mm
- Elero VariEco M 50 NHK - 50 Nm - 14 rpm - XXX watts - length XXX mm
