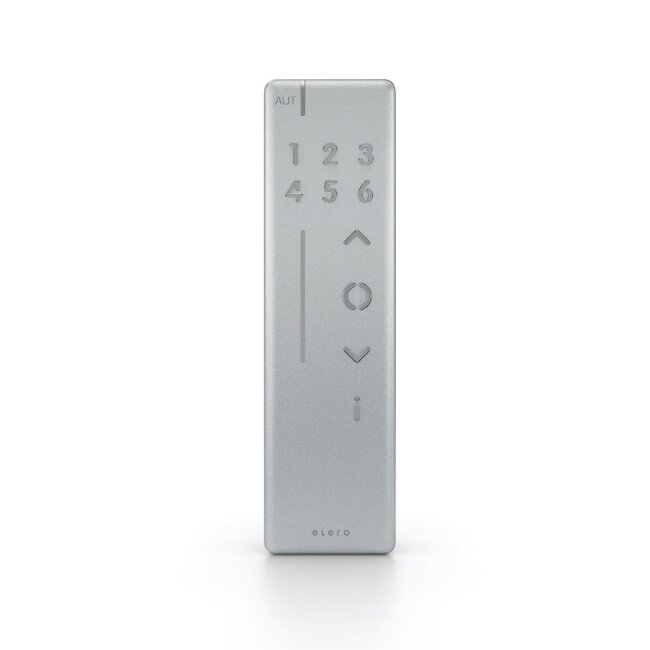

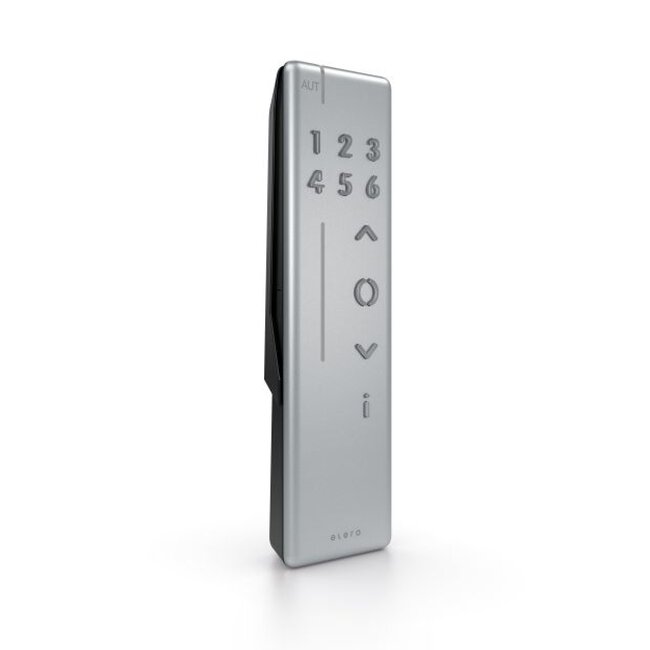

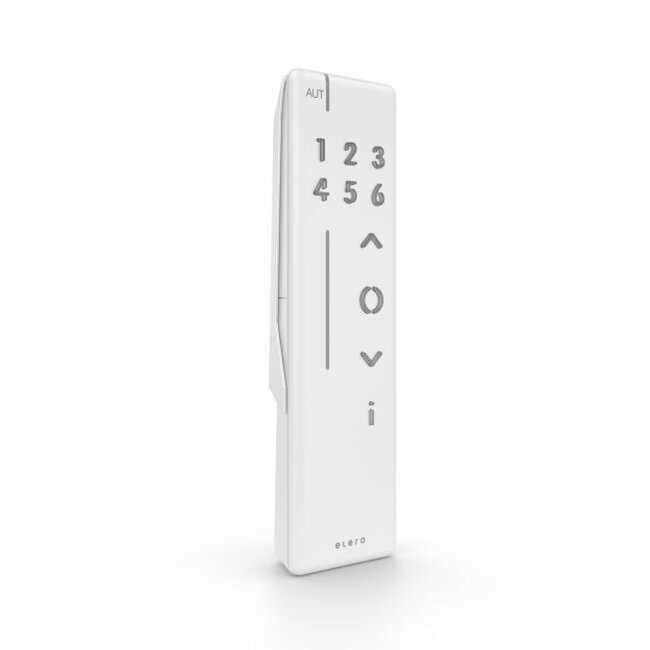

Elero VarioSon-868 Slide - 6-channel handheld transmitter

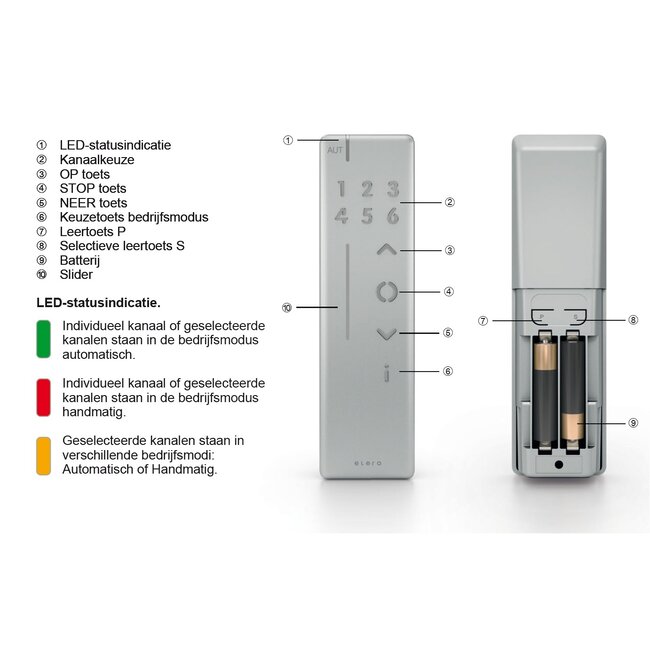

This stylish 6-channel Handheld transmitter effortlessly controls up to six different vision and sun protection applications - all with one device. Thanks to the intuitive control, you can easily switch between manual and automatic modes. A short press on the i-button immediately shows the active mode via a clear colour indication.
The Handheld transmitter is equipped with advanced bi-directional radio technology, ensuring reliable signal reception and processing. The integrated routing function ensures safe and stable signal transmission even in complex installations.
Fine-tuning the slat position of blinds, steplessly dimming lights or controlling a heat radiator - this handheld transmitter offers complete control, when used in combination with compatible elero radio receivers.

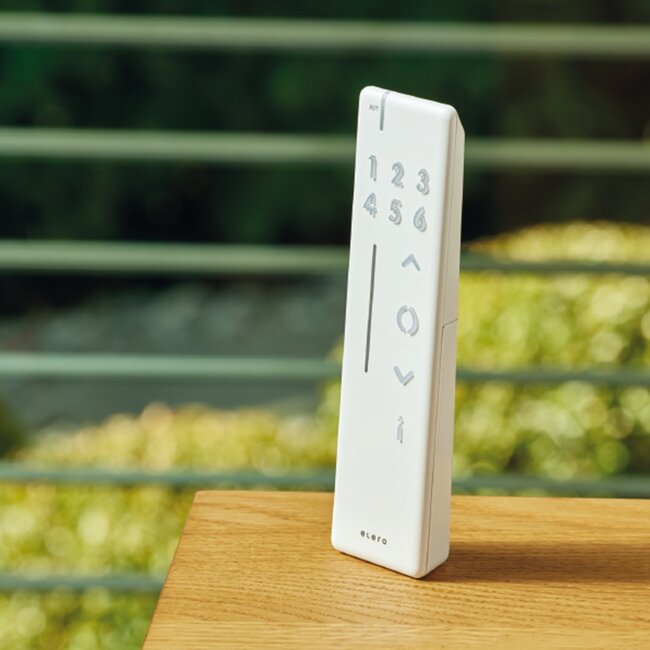

Available in stylish white or elegant silver, and featuring large, raised buttons and an ergonomic slider for a comfortable and user-friendly experience.
- 6-channel bi-directional transmitter
- frequency 868 MHz
- large up - stop - down buttons
- manual/automatic control switching per channel

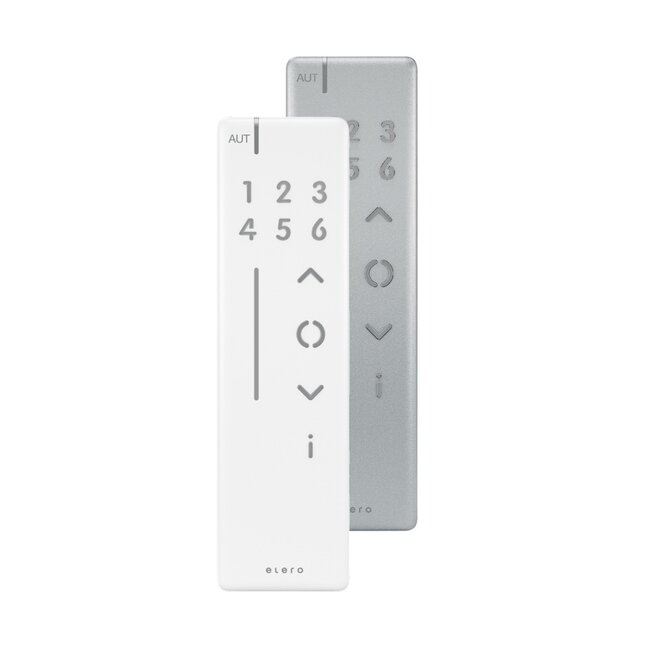

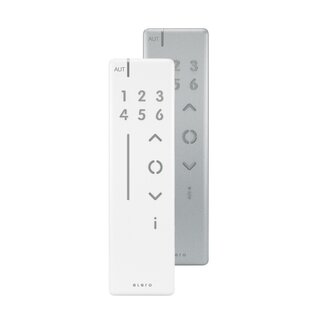

- available in white and silver
- frequency 868 MHz
- transmission power 500 mW - 10 dBm
- degree of protection IP20
- dimensions 155x43x21 mm
- weight 81 grams
- including batteries, 2 x AAA
- magnetic wall mount included
download the manual of the Elero VarioSon handheld transmitter here
Logging in an additional handheld transmitter
(up to 16 transmitters can be stored in the memory of the tubular motor)
Option 1, using an already functioning transmitter
1. simultaneously press - on the old transmitter - the UP, DOWN and P-buttons for min. 3 seconds
--> Motor runs up and down for 2 minutes
After the up movement has started, press the UP button
--> Motor stops and goes up again
Press the DOWN button after starting the downward movement
--> Motor stops and Transmitter is registered
Option 2, without old transmitter register new transmitter.
1. switch the mains voltage of the respective tube motor off and on again
--> the receiver in the drive is open for 5 minutes
2. Press the P button on the transmitter
--> Motor runs up and down for 2 minutes
3. after the up movement has started, press the UP button
--> Motor stops and goes up again
4. after starting the downward movement, press the DOWN button
--> Motor stops and Transmitter is registered
