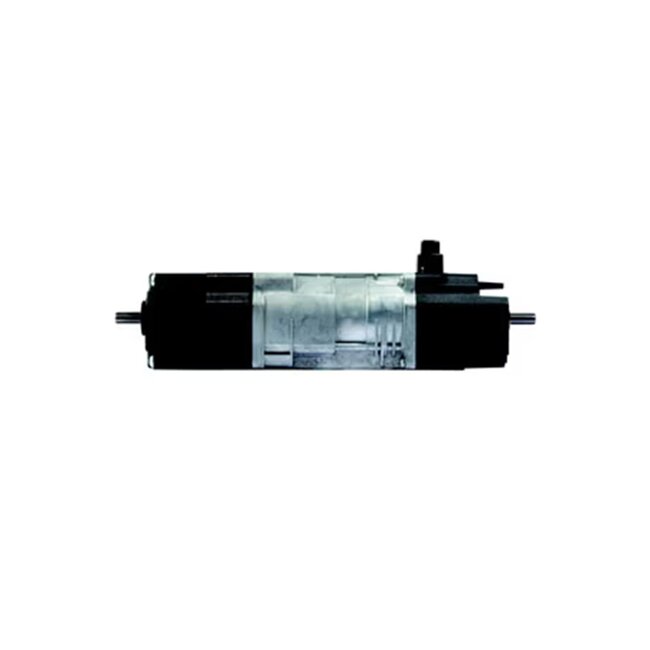

Somfy Venetian blind motor J406 6/24 HTM

Somfy J406 6/24 HTM blinds motor

The Somfy J4 HTM Venetian blind motor is designed for quick, safe and easy installation. Thanks to its convenient mounting clips and Hirschmann STAS3 connection, the motor is effortless to fit and connect.

The Motor is fitted with pre-assembled tape that minimises resonance, ensuring quieter operation. The J4 HTM features two adjustable end points that can be easily adjusted via the integrated push buttons.

Each motor is delivered in the lower end position, making it ready for built-in immediately. The upper end position is set with the push button or automatically reached after 60 shaft revolutions. The detachable cable makes installation and maintenance extra flexible.

An efficient and sophisticated solution for driving external blinds.

- force 6 Nm
- speed 24 rpm
- protection index IP 54
- weight 1.4 kg
- dimensions 380x105x68 mm (wxhxd)
- distance for rivet connection 35 mm
- power consumption 95 W
- Power supply 230 V / 50 Hz
- current 0.4 A
- mechanical final adjustment
- capacity of the final adjustment 90 rpm
- motor cable 0.5 m 4x0.75 mm² with hirschmann Stas3 plug
