Cherubini Wave RX Ø 45 tubular motor with receiver and electronic adjustment - USA

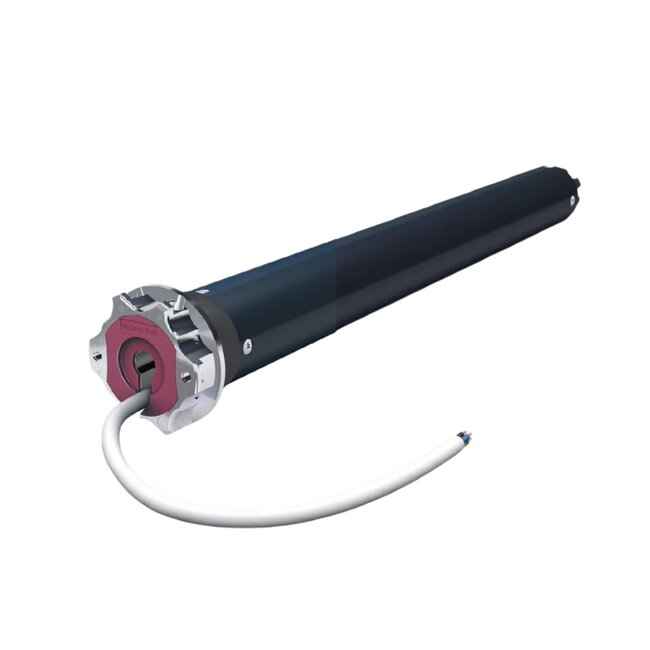

Cherubini Wave RX Ø 45 tubular motor

Tubular motor specifically designed for sun protection, featuring electronic end-of-travel adjustment, an integrated receiver and the option to connect a pulse push-button. Settings can be adjusted easily and precisely using a Handheld transmitter, supported by encoder technology for accuracy and reliability. The system features a secure Rolling Code decoder system and offers both manual and semi-automatic settings for end positions. Additional functions include fabric stretch compensation and adjustable obstacle detection.

 - Supplied excluding motor support and adaptation kit
 - tubular motor 120 V/50 Hz
 - with integrated 433 MHz radio receiver
 - memory for 15 handheld transmitters
 - available in 15 Nm
 - speed of 17 rpm

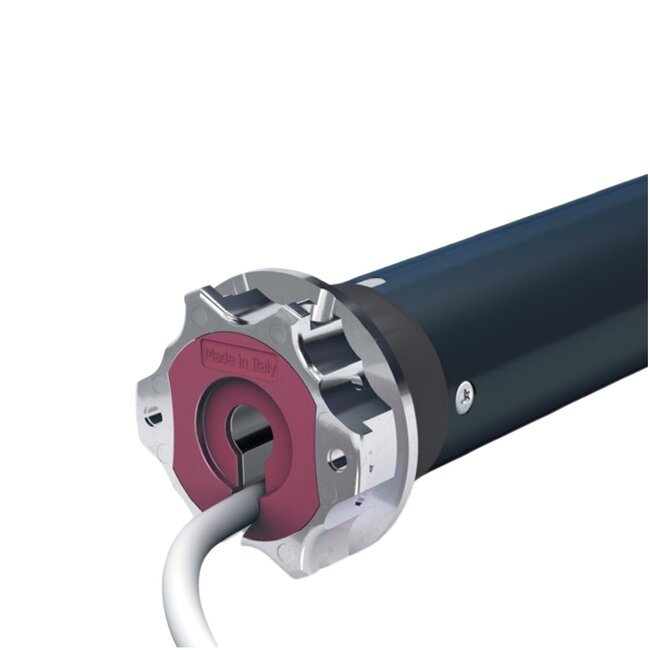

 - steel rigid-head motor housing
 - suitable for folding-arm awnings, Screens and pergolas
 - easy-to-programme handheld transmitter
 - manual and semi-automatic adjustment of the end positions
 - fabric tension compensation for cassette awnings when closed
 - obstacle detection during upward movement, with 3 sensitivity settings
 - option to save an intermediate position
 - Motors can be connected in parallel
 - tubular motor fits into a tube with a minimum internal diameter of 50 mm
 - fine-tuning range of 35 revolutions

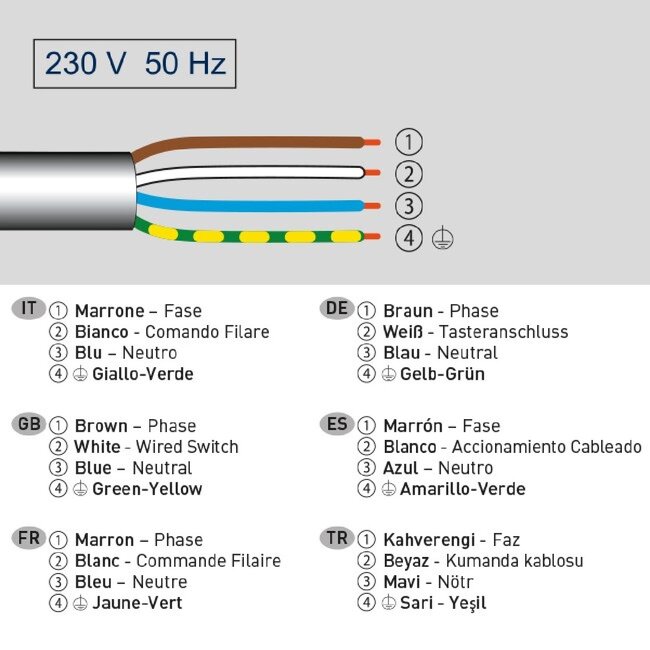

 - Supplied as standard with a white cable, length 2.5 metres
 - Not suitable for continuous use

Download the manual for the Cherubini Wave RX tubular motor here
Watch the installation video on YouTube here

Type: Cherubini Wave RX Ø 45 tubular motor

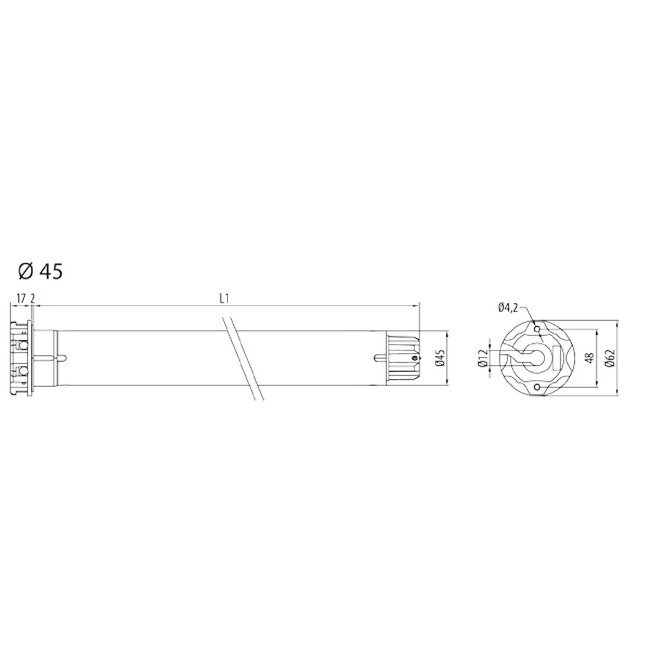

 - Cherubini Wave RX 15/17 – 15 Nm – 17 rpm – 170 watts – length 503 mm
