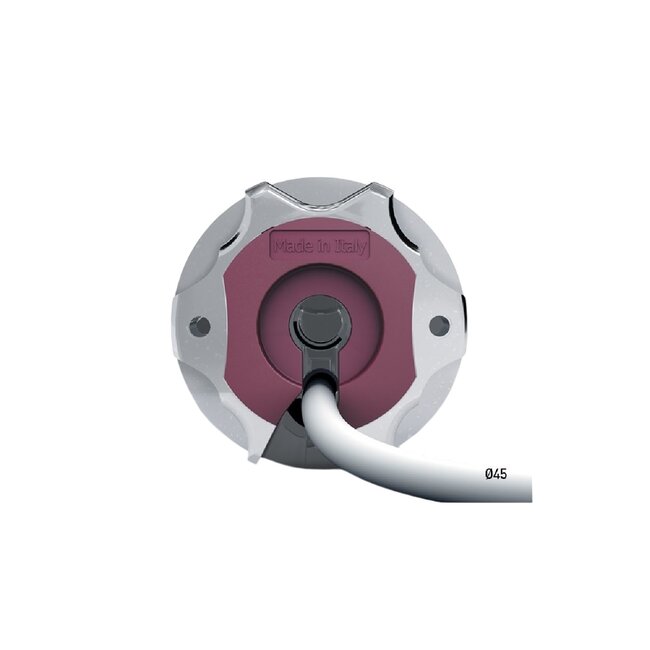

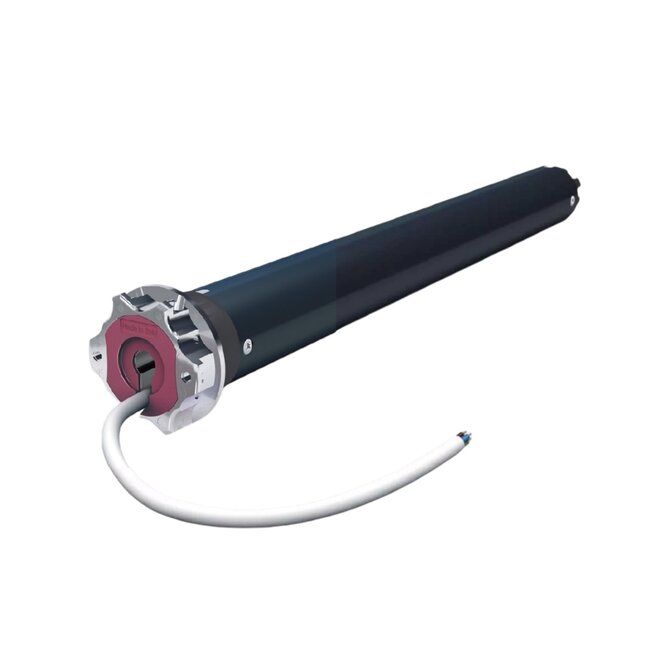

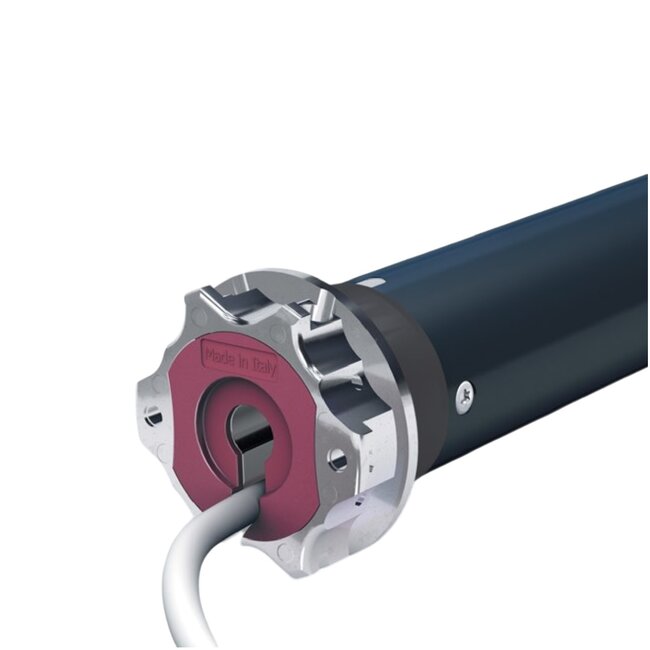

Cherubini Wave RX Ø 45 tubular motor with receiver and electronic adjustment

Cherubini Wave RX Ø 45 tubular motor

Tubular motor specifically for blinds with electronic final adjustment, integrated receiver and possibility of connecting pulse push button. Settings are easily and precisely adjusted with a Handheld transmitter, supported by encoder technology for accuracy and reliability. The system includes a secure Rolling Code decoder system, and offers both manual and semi-automatic settings for end positions. Additional features include fabric stretch compensation and adjustable obstacle detection.

- Supplied without motor support and adapter set

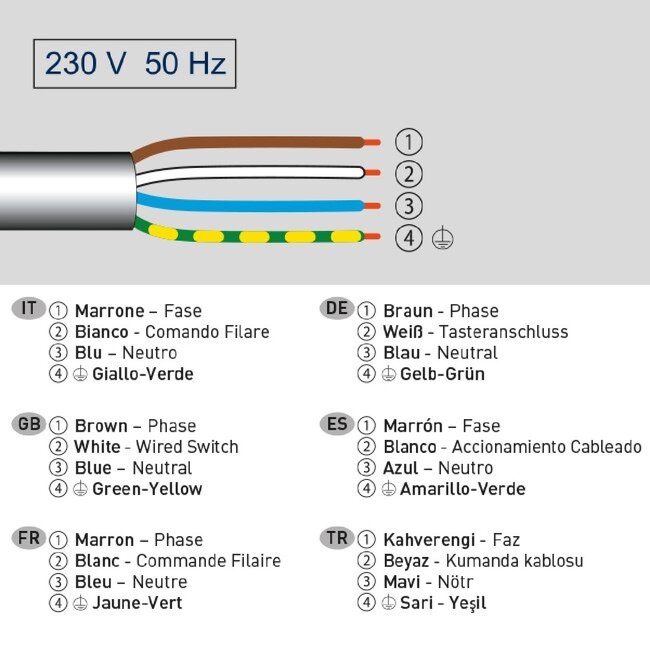

- tubular motor 230 V/50 Hz
- with integrated radio receiver 433 MHz
- memory for 15 handheld transmitters
- available in 15 to 50 Nm
- speed of 12 or 17 rpm, depending on the force

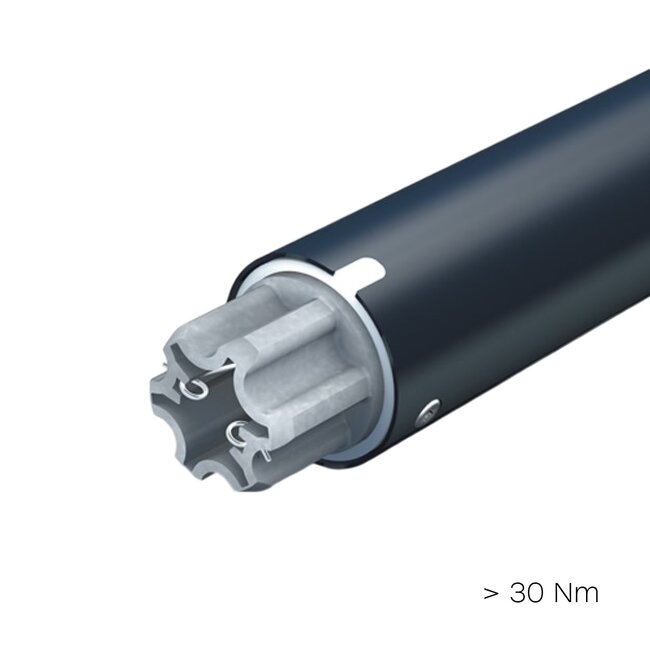

- steel starhead motor head
- suitable for hoods, screens and pergolas
- Handheld transmitter easy to program
- manual and semi-automatic setting of the end positions
- fabric stretch compensation for closed cassette awnings
- obstacle detection during upward movement, sensitivity setting on 3 levels
- possibility of storing an intermediate position
- motors can be switched in parallel
- tubular motor fits tubes with a minimum inner diameter of 50 mm
- final adjustment capacity 35 revolutions
- white cable, length 2.5 metres, supplied as standard
- not suitable for continuous use

Download here the manual of the Cherubini Wave RX tubular motor
Go here to the installation video on Youtube

Type Cherubini Wave RX Ø 45 tubular motor
- Cherubini Wave RX 15/17 - 15 Nm - 17 rpm - 170 Watt - length 503 mm
- Cherubini Wave RX 32/17 - 32 Nm - 17 rpm - 250 Watt - length 543 mm
- Cherubini Wave RX 40/17 - 40 Nm - 17 rpm - 275 Watt - length 543 mm
- Cherubini Wave RX 50/12 - 50 Nm - 12 rpm - 275 W - length 543 mm
