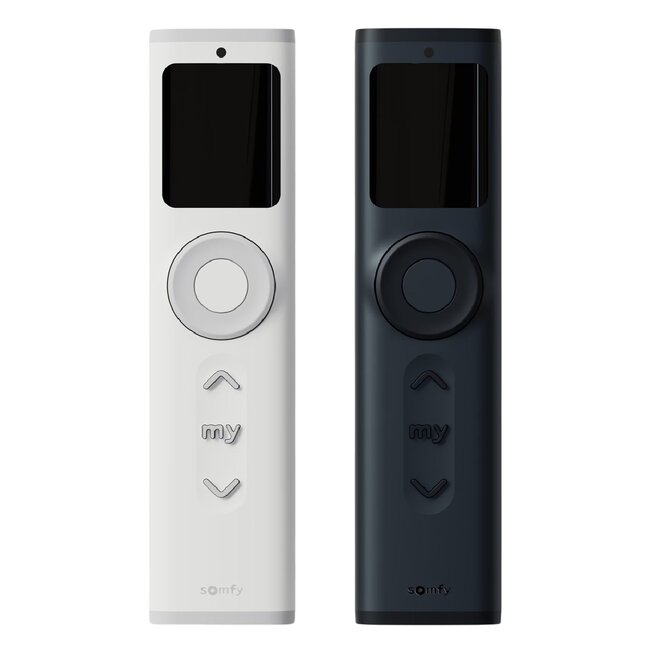

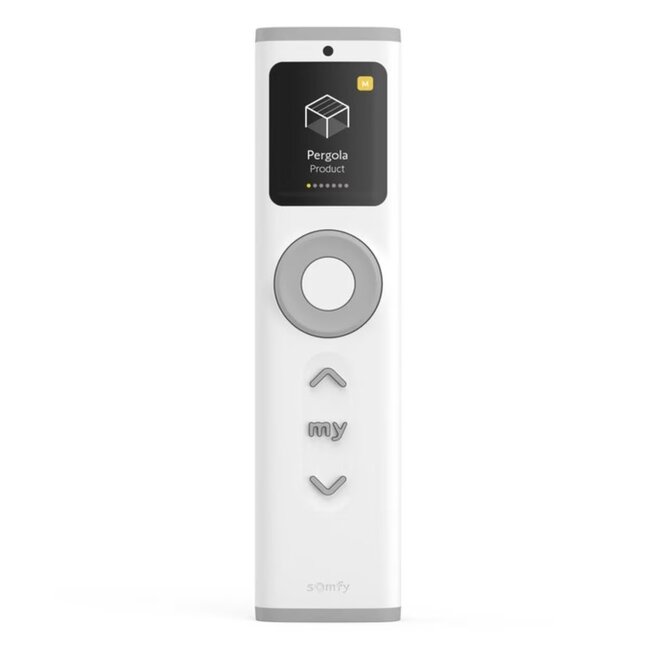

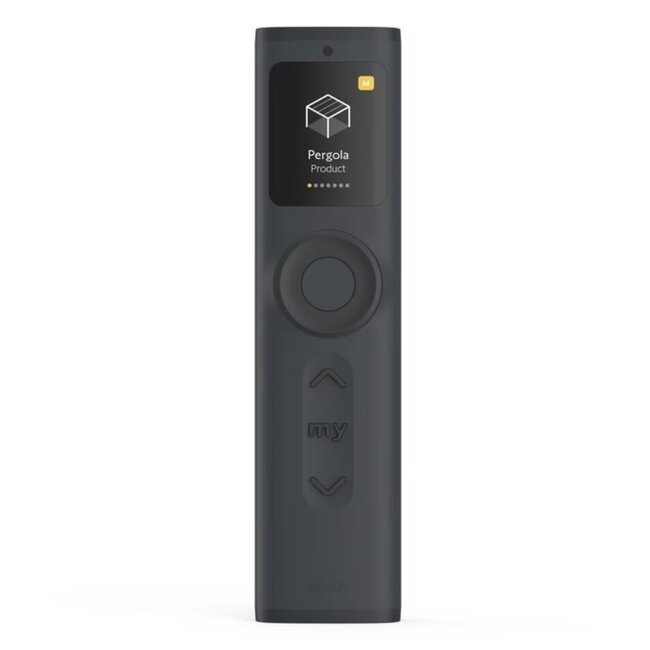

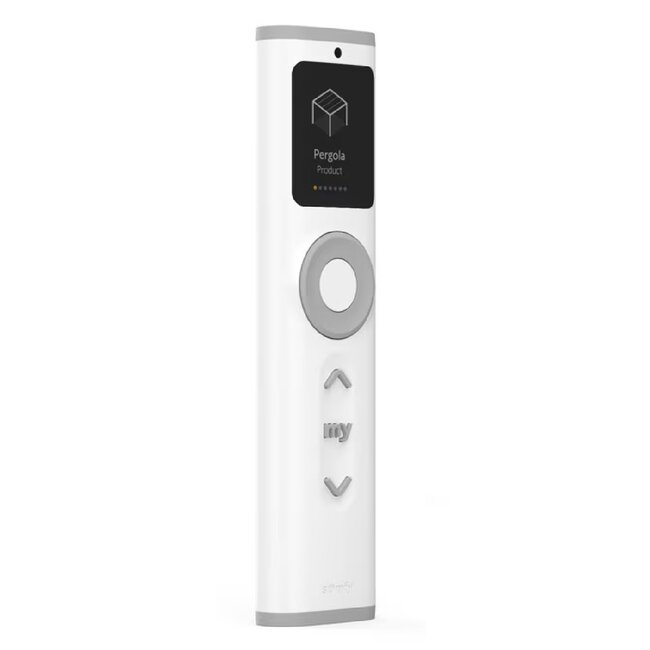

Somfy Ysia Patio io 16 channel transmitter

Somfy Situo 1 RTS II remote control is the successor to the widely used Telis 1 RTS 74300 handheld transmitter. It is suitable for all Somfy products equipped with RTS wireless technology. A Somfy Telis 1 RTS remote control is easy to program yourself. It is possible to operate several RTS products simultaneously, at the touch of a button.

- suitable for all io devices
- available in 2 versions:
- Pure - white
- Anthracite
- successor to Somfy Telis 1 RTS Pure (1810630), Telis 1 RTS Silver (1810637), Telis 1 RTS Patio (1810642) and Telis 1 RTS Lounge (1810649)
- frequency 433.42 MHz
- protection rating IP30
- easily programmable handheld transmitter
- pulse operation (one button press)

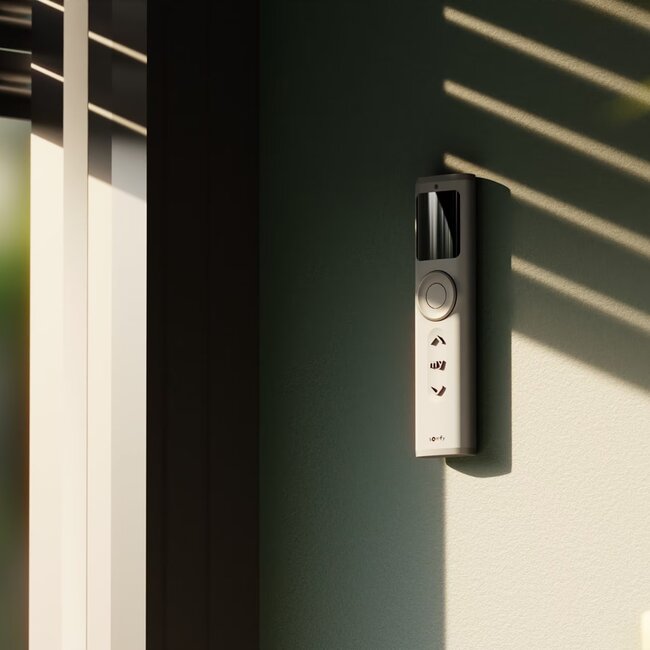

- attachment via supplied wall button
- Handheld transmitter supplied with battery as standard

Setting an additional transmitter using an already functioning Somfy RTS transmitter
1. take an already programmed Somfy RTS transmitter

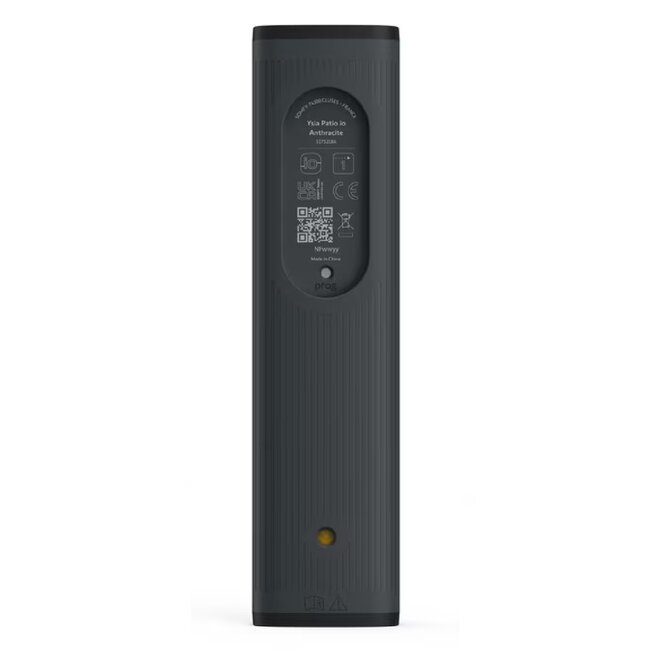

2. press the programming button on the back until the Roller shutter responds with a short movement.
3. Take the new Somfy RTS transmitter.
4. briefly press the programming button on the back until the Roller shutter responds with a short movement.
5. repeat these steps with each channel
6. the new Somfy Situo 1 RTS Pure II transmitter is set up

Replacing a lost Somfy RTS transmitter
only one Motor should be powered up
1. switch off the power supply for 2 seconds
2. switch on the power supply for 8 seconds
3. switch off the power supply again for 2 seconds
4. switch on the power supply again, the Motor responds with a short movement
5. briefly press the transmitter programming button, the Motor responds with a short movement
6. the new transmitter is set

Download the manual for setting up the transmitter here

1. If you have an already functioning Handheld transmitter you can use it to register the new transmitter, download the manual how to do this here.
- Adding an additional Somfy RTS transmitter

2. If you do not have an old Handheld transmitter, the motor will have to be reset to the factory setting, after which you can reset the tube motor and register a new transmitter in the process.
- Reset motor to factory settings
- reset the Somfy RTS tube motor

Back to all Somfy remote controls >>
