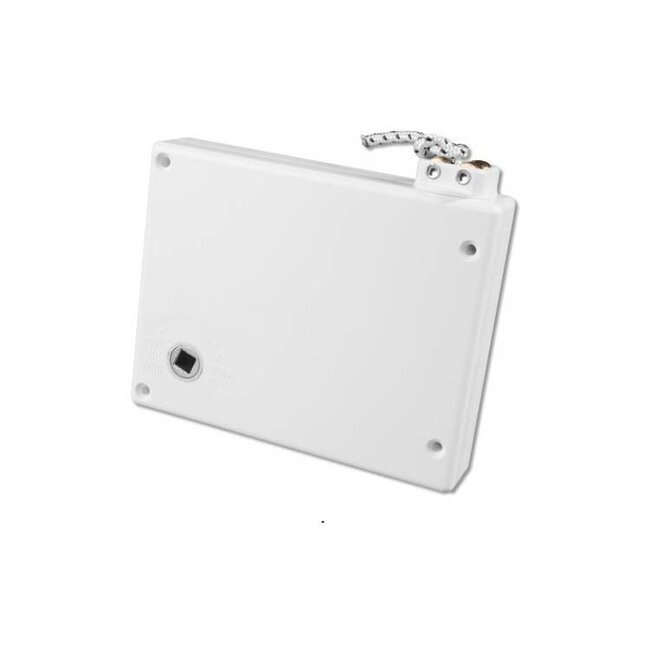

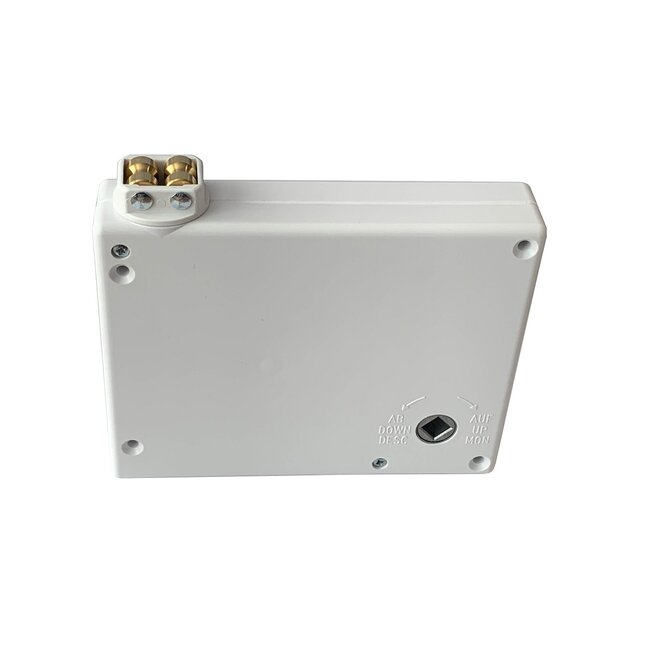

Selve Cord winder

Selve cord winder on cord winder

Cord winder or cord winder is suitable for cord with a diameter of Ø 5 mm. The 45° rotatable outlet allows flexible installation. The 3:1 transmission ensures that even larger installations can be operated with little force and minimal cord wear. The winder can be mounted to the wall with the housing on both sides and has a tensile force of up to approximately 29 kilograms.

- suitable for 6 metres Ø 5 mm Cord
- suitable for Roller shutters up to ± 6 m2
- colour white
- maximum tensile force is 29 kg
- delay 1:3
- is supplied without crank
- the cord winder can be screwed to the wall on both sides of the housing
- hole for crank is square 8 mm

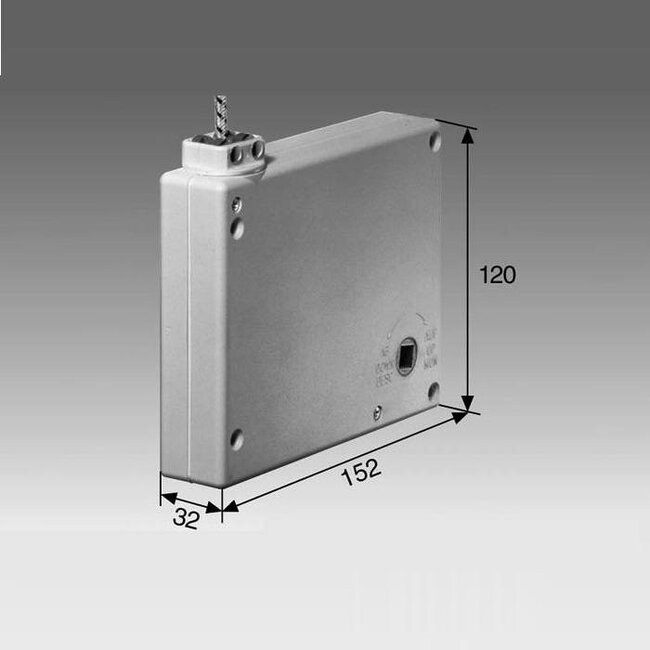

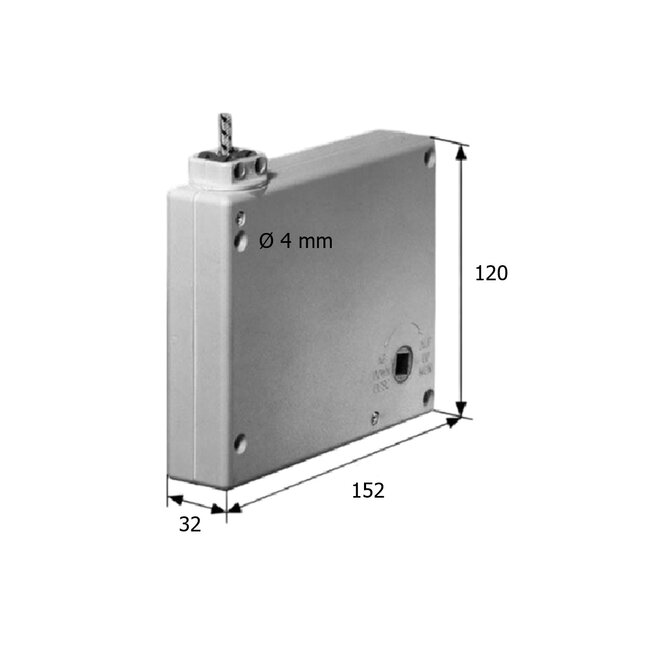

- dimensions 152x120x32 mm
- output Strap can be swivelled 45 degrees
