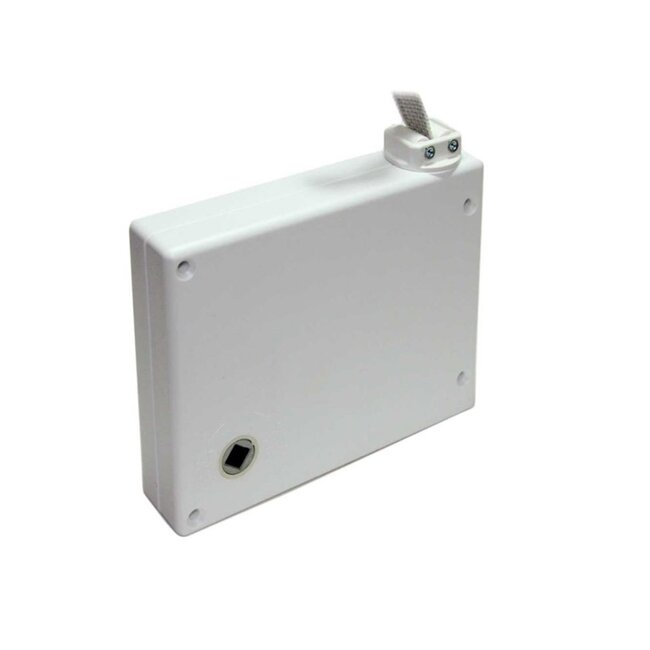

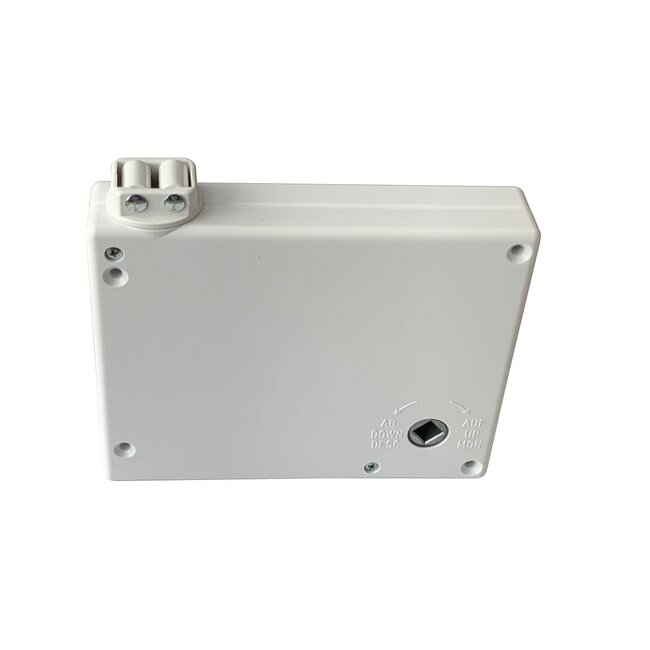

Selve Tyre winder

Selve tape winder or belt winder

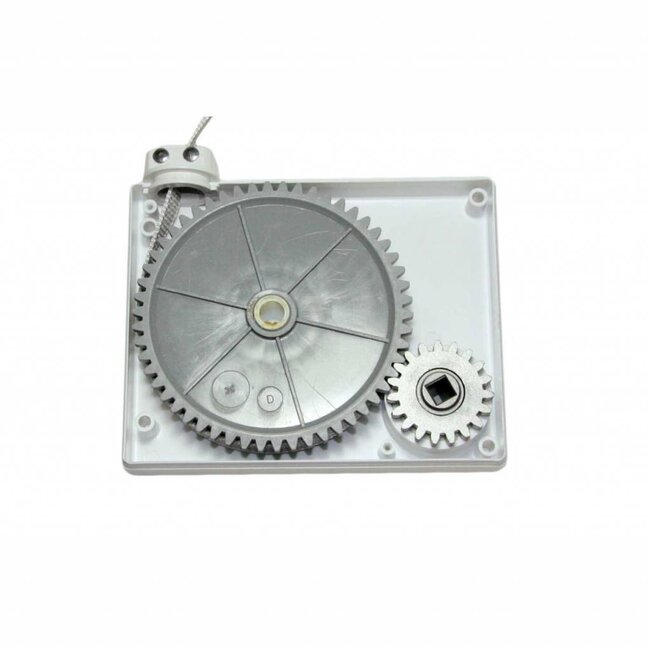

Strap winder or strap rewinder with crank, suitable for straps up to 15 mm wide, strap exit rotatable by 45°. Thanks to the 3:1 transmission, even large installations can be operated with little force and minimal belt wear. The winder can be fixed to the wall with the housing on both sides.

- suitable for 5 metres of strap, max 15 mm wide
- suitable for Roller shutters up to ± 6 m2
- colour white
- maximum tensile force is 29 kg
- delay 1:3
- is supplied without strap, crank and fixing screws
- the strap winder can be screwed to the wall on both sides of the housing
- hole for crank is 8 mm square

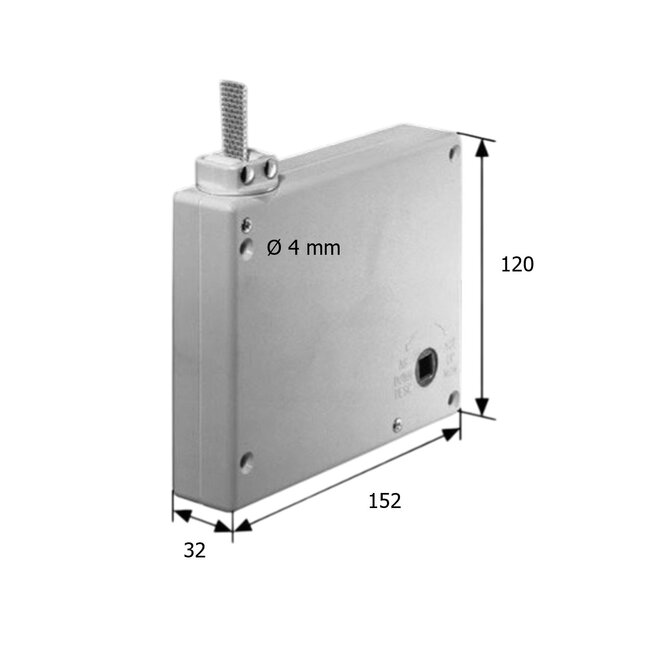

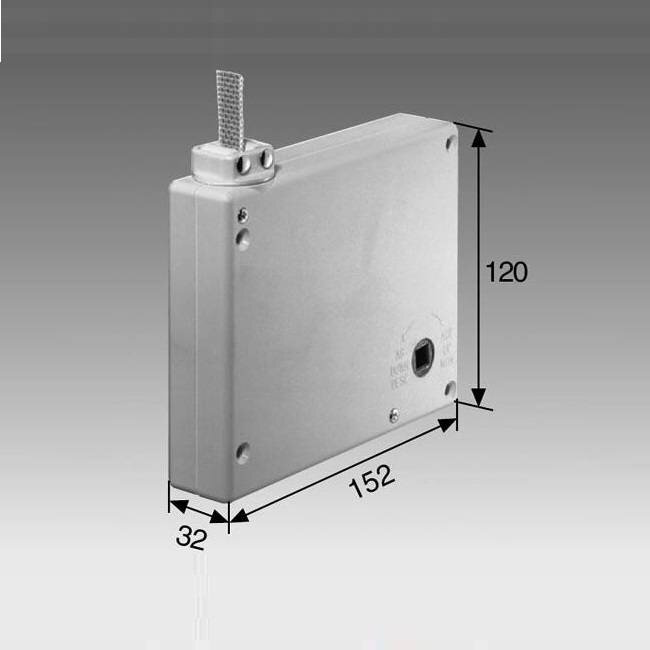

- dimensions 152x120x32 mm
- output Strap can be swivelled 45 degrees
