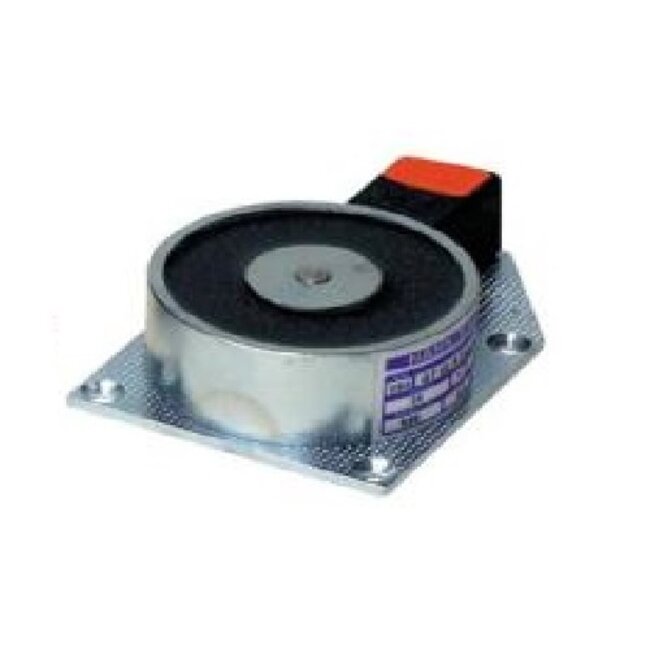

Kendrion-Hahn Door magnet GT60R018

Door magnet GT60R018 with mounting plate

Providing the magnet with 24 Volt DC voltage makes it stick to the anchor plate. If the voltage drops, the door closer ensures that the door closes automatically. An emitter pin in the magnet prevents the armature plate from sticking due to remanent magnetism.

- magnet diameter Ø 60 mm
- height of magnet 23 mm
- fastening plate 93x65x3 mm
- supply voltage 24 Volt DC
- tensile force 686 N
- power 2.1 Watt
- duty cycle (ED) 100%
