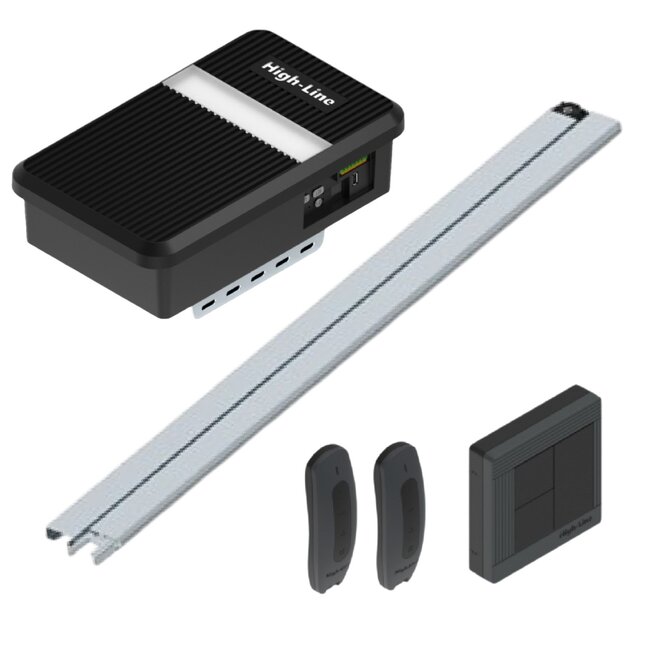

High-Line DL garage door opener set for up-and-over and sectional doors measuring 8 to 18 m². Complete with motor, guide rail, two handheld transmitters and a wall-mounted transmitter for electric control. Read more.
This robust and efficient High-Line garage door opener set is suitable for sectional doors ranging from 8 to 18 m². The set comprises a motor, a track, two Handheld transmitters and a wall-mounted remote control. Thanks to its pulling force of 800 to 1500 Nm, this opener is suitable for both smaller and larger doors. The Motor operates quietly, with a noise level of up to 54 dB. Optionally, the opener can be upgraded with MyQ technology, allowing the garage door to be operated remotely. This makes it easy to convert your manual up-and-over or sectional door into an electrically operated door.
- choice of the following motors:
- 800 Nm, max 100 kg, max 8 m²
- 1000 Nm, max 140 kg, max 10 m²
- 1500 Nm, max 225 kg, max 18 m²
- Choice of 5 guide rail lengths:
- clear height up to 2125 mm, installation depth 3290 mm
- clear height up to 2250 mm, installation depth 3440 mm
- clear height up to 2500 mm, installation depth 3640 mm
- clear height up to 3000 mm, installation depth 4140 mm
- Clear height up to 3500 mm, installation depth 4640 mm
- 2 handheld transmitters
- 1 wireless wall-mounted transmitter
- power supply 220–240 volts, 50–60 Hz
- speed 160 mm/s
- receiver operating at a frequency of 868 MHz
- MyQ ready
- soft start and stop
- programmable automatic closing
- Colour: black
- LED lighting, 3 minutes
