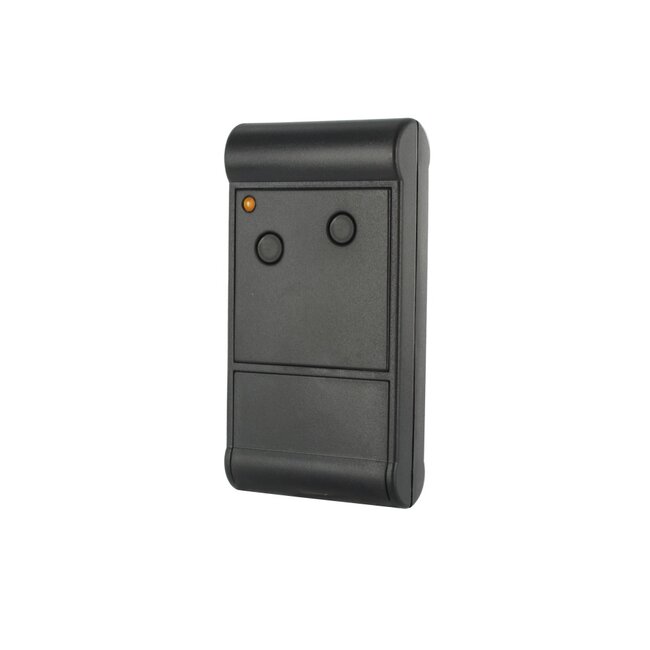

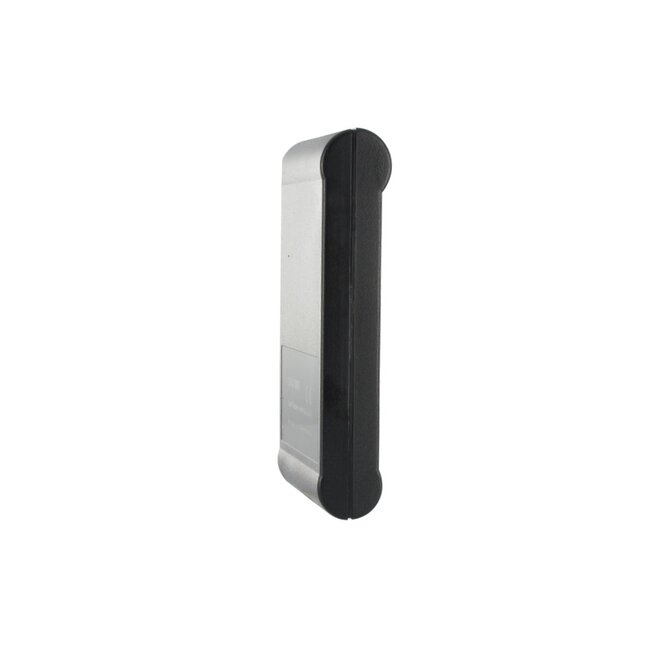

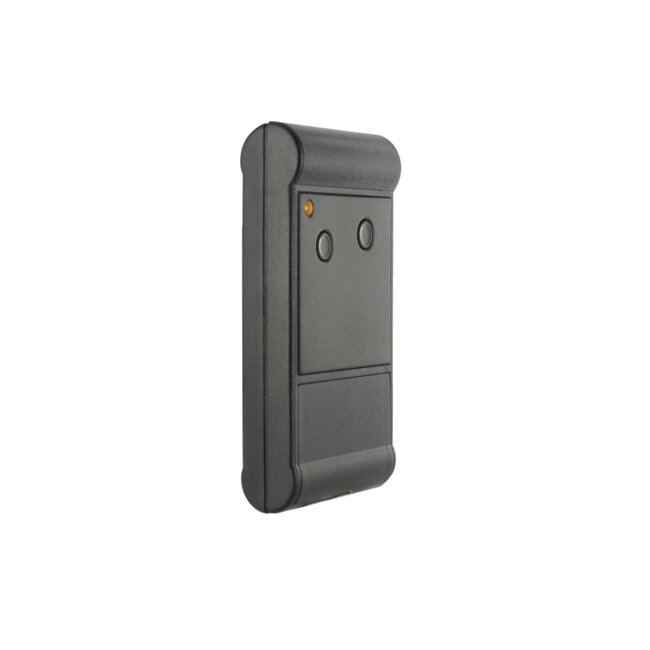

Tedsen SKX2-MD 2-channel 433 MHz midi handheld transmitter
The Tedsen SKX2-MD 2-channel 433 MHz handheld transmitter is the reliable remote control for operating roller shutters, screens and blinds with a Tedsen receiver. Thanks to the 433.92 MHz frequency and simple dipswitch coding, this handheld transmitter can be quickly programmed and is immediately ready for use. The Tedsen SKX2MD remote control can be recognised by its striking orange/yellow LED.
This midi Handheld transmitter is widely used by professional roller shutter suppliers and is a proven solution for both replacement and expansion of existing systems.
Key features
- suitable for Tedsen receivers with coding switch (dipswitch)
- frequency: 433.92 MHz
- 2-channel handheld transmitter, control two systems separately
- up/down control for one system
- pulse control for two different applications
- easy self-programming via 9 dipswitches
- recognisable orange/yellow LED during control
- compact midi format, fits comfortably in your hand
- including 12V MN21 battery
Specifications
- dimensions 78x41x15 mm (hxwxd)
- weight 30 grams
- colour black
- coding 9 dipswitches with 3 positions (ON - 0 - OFF)
Compatibility and application
The Tedsen SKX2-MD Handheld transmitter is widely used in systems from, among others:
Brinkman, Doorfix, Euroll, GNS, Kartech, NRF (Dutch Roller shutters Factory), Protector, Roller shutter, Rycol, Slaets, Stackdoor, Teletaster, Vermij and Wessels & Westend.
Ideal as a replacement for an existing Tedsen Handheld transmitter or as an extra transmitter within an existing system.
Setting coding (dipswitch handheld transmitter)
Setting this Tedsen handheld transmitter is simple:
1. Open the battery compartment
2. Set the 9 dipswitches exactly as for your current working handheld transmitter
3. Ready, no further programming required
This Handheld transmitter has 3-position dip switches (ON - 0 - OFF) and is suitable for Tedsen models on 433 MHz within the SKX series.
When the handheld transmitter has 9 2-position dip switches - ON (up) - OFF (down), it is a 27 MHz handheld transmitter of the SM and SM-MD series.
-- download the instructions for setting up the handheld transmitter here --.
