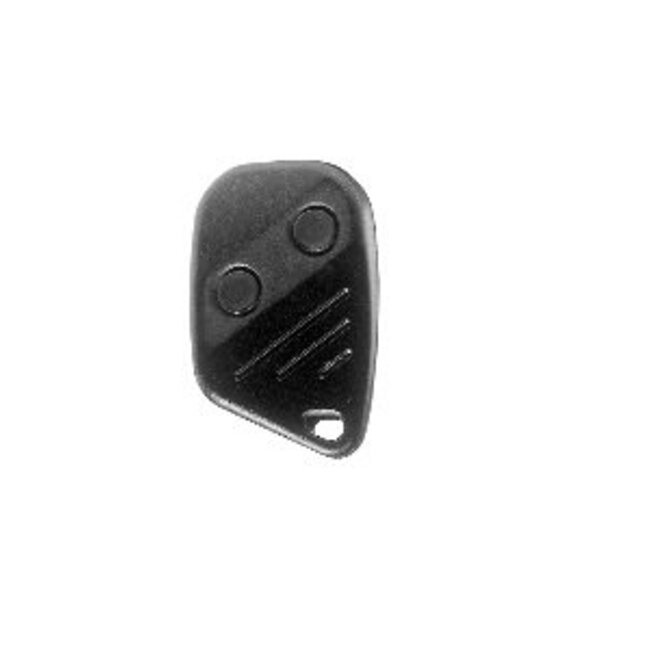

Tedsen SKJ 2-channel 433.92 MHz mini remote control

Applicable with a product equipped with Tedsen receiver with a coding switch.

- frequency 433 MHz
- wireless operation
- easy to program
- pulse control for 2 systems (one touch operation)
- up-down control for one system
- black
- for teaching an SKJ handheld transmitter to a receiver or control unit, an SKX handheld transmitter with dip switches is required
- for an additional handheld transmitter, the SKJ handheld transmitter code can be learned from an already functioning SKX or SKJ handheld transmitter
- battery supplied as standard

Code setting of the Tedsen SKJ mini handheld transmitter

Due to its small size, the SKJ handheld transmitter does not contain dip switches, so coding is transferred via radio signal from an already functioning Tedsen SKX handheld transmitter.

First set up your roller shutter control or receiver with another Tedsen Teletaster Handheld transmitter SKX1MD, SKX2MD, SKX3MD, SKX4MD, SKX-LC, SKX1WD, SKX2WD, SKX4WD, SKX-HD or SKX after which the coding can be transferred to the SKJ Handheld transmitter.

Transferring the coding to a new SKJ... Handheld transmitter:
1. Hold the top two buttons of the new SKJ... Handheld transmitter for about 4 seconds until the LED light briefly switches on and off.
2. Place the new and old Handheld transmitters side by side (against each other).
3. Press the first functional button of the old Transmitter and keep it pressed.
4. Press the first button on the new Handheld transmitter.
5. Press and hold both buttons for about 5 seconds, the LED light on the new handheld transmitter will briefly turn on and off.
6. The code for the first button is now transferred to the new Handheld transmitter.
7. Repeat steps 1 to 5 for each subsequent button you want to transfer.
8. Your new Tedsen SKJ... Handheld transmitter is now ready for use.
