Hörmann HEI 3 3-channel BiSecur receiver

Hörmann HEI 3 3-channel BiSecur receiver

The Hörmann HEI 3 868-BS is a 3-channel radio receiver for the wireless control of compatible Hörmann garage door and gate operators. Thanks to 868 MHz BiSecur technology, this receiver offers secure and reliable wireless control.

The receiver works exclusively with compatible Hörmann 868 MHz BiSecur handheld transmitters and pulse generators. Handheld transmitters using the older 868 MHz fixed-code system are not supported.

With the Hörmann HEI 3, many older Hörmann operators can be upgraded with the BiSecur radio system.

- HEI 3 868-BS
- 3-channel receiver
- frequency 868.3 MHz
- BiSecur encryption
- pulse
- supply voltage 24 V DC
- Protection class IP65
- Temperature range: -20 °C to +60 °C
- aluminium housing with plastic end caps

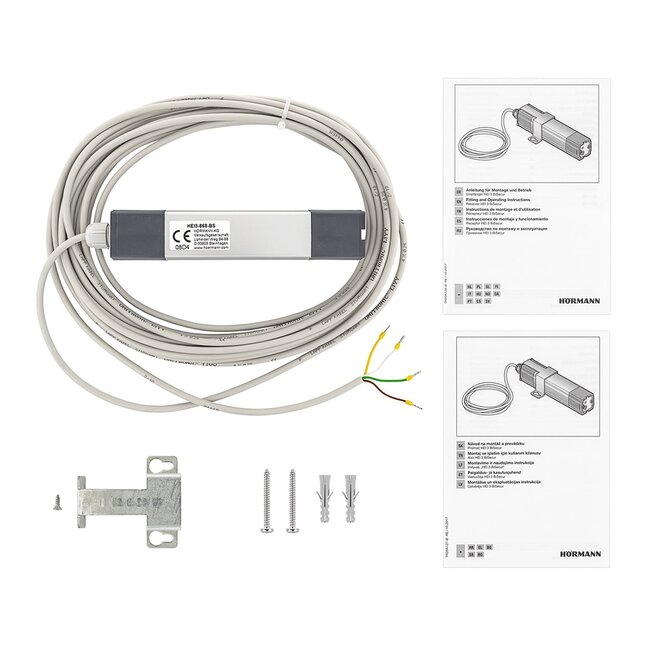

- 7-metre, 4-core connection cable

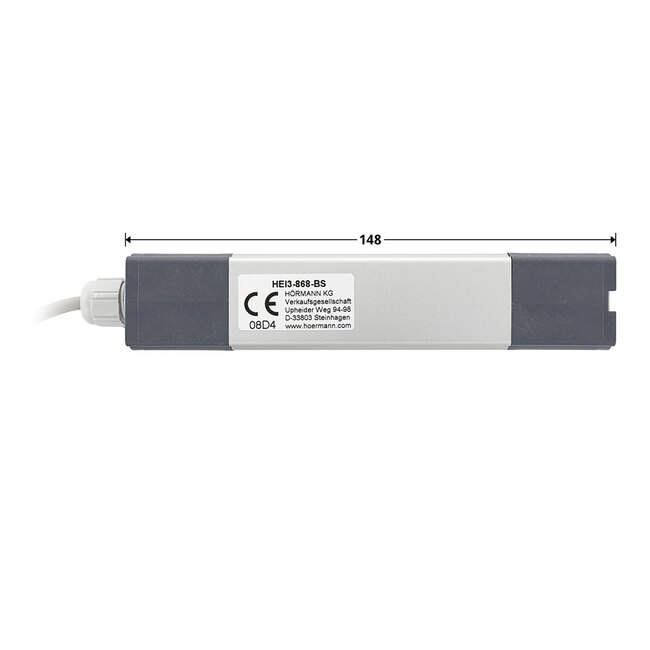

- Dimensions: 140 × 30 × 32 mm (W × H × D)

Suitable for, amongst others

- Hörmann SupraMatic E / P / HT
- Hörmann ProMatic, excluding battery-powered versions
- Hörmann RollMatic|
- Hörmann RotaMatic / P / PL / battery-solar
- Hörmann VersaMatic / P / battery-solar
- Hörmann LineaMatic / P / H / battery-solar
- Hörmann DTH 700
- Hörmann DTU 250
- Hörmann STA 90 / 180 / 220 / 400
