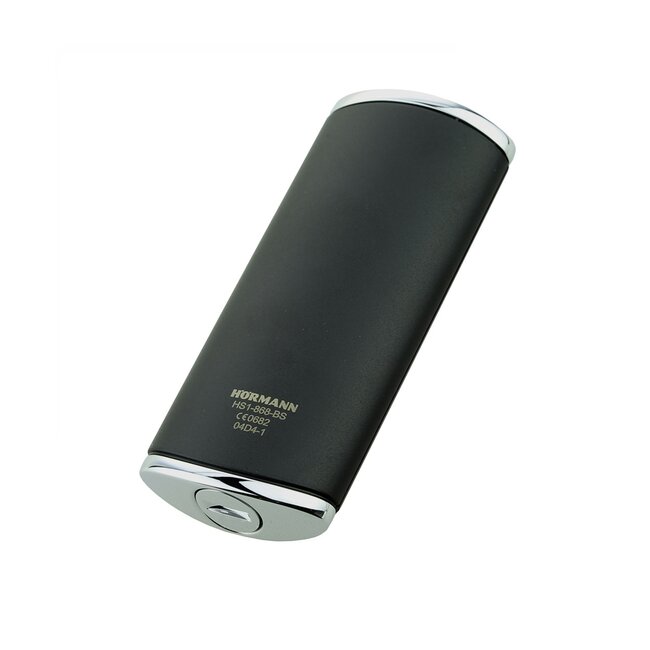

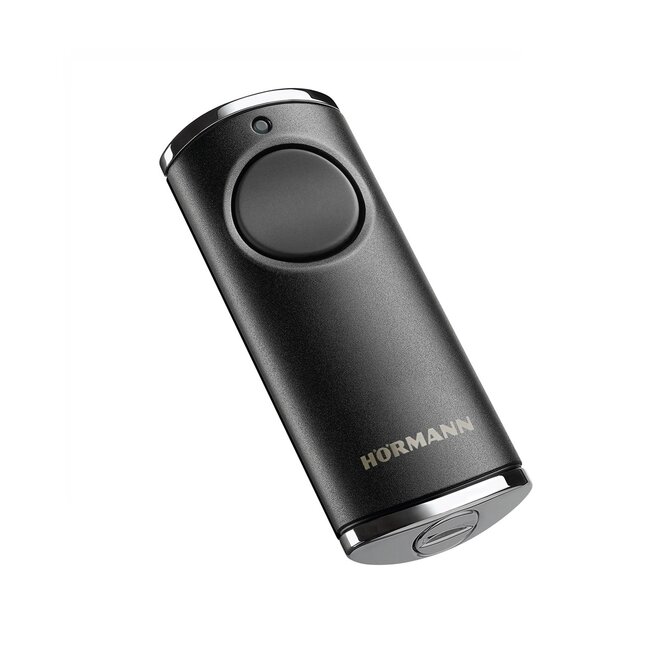

Hormann HS1 868 MHz BiSecur 1-channel handheld transmitter, black
- frequency 868.30 MHz
- BiSecur encryption
- 1 channel
- black plastic casing with textured surface
- pulse operation
- self-learning code
- Can be switched to fixed code
- 1.5-volt AAA battery
- Includes a ring for attaching to a key ring
- dimensions 38x95x16 (wxhxd)
- temperature range: 0 °C to +50 °C
- Range up to 30 metres
- HomeLink-compatible after switching to fixed coding
Handheld transmitter featuring the latest BiSecur technology
Hörmann’s patented BiSecur technology is based on 128-bit encryption, similar to that used in online banking. This makes it virtually impossible to copy the Handheld transmitter’s radio signal, thereby enhancing the security of your control system. In addition, the range can be extended, although this is still highly dependent on the surrounding conditions. The BiSecur handheld transmitter only works with Hörmann garage door operators featuring integrated BiSecur receivers or with an external BiSecur receiver. Once you have programmed the Handheld transmitter to a fixed 868 MHz code, you can also operate all devices fitted with an 868 MHz receiver from Hörmann.
HomeLink compatibility
Many motor vehicles are already fitted with a so-called ‘car’ button for operating a garage door operator. The code from the Handheld transmitter is transferred to the corresponding HomeLink button in the vehicle. However, this only works with the 868 MHz fixed code and not with BiSecur encryption. To use this function, a BiSecur handheld transmitter must first be converted to the fixed 868 MHz code, and a compatible 868 MHz receiver must be connected to the operator. Genuine Hörmann door operators with BiSecur receivers are therefore not specifically controlled by HomeLink. If you wish to operate them using HomeLink, you must connect an additional 868 MHz receiver.
Using the HSE 1 BiSecur handheld transmitter
- An existing BiSecur or 868 MHz receiver is required
- SupraMatic E/P/HT garage door operator
- ProMatic and ProMatic Accu Solar garage door operator
- RollMatic garage door operator
- RotaMatic / P / PL / Accu Solar garage door operator
- VersaMatic P / Accu Solar swing gate operator
- LineaMatic P / Accu Solar sliding gate operator
- all other products with Hörmann BiSecur or 868 MHz receiver
Setting up a new Transmitter using the old Transmitter
1. Press and hold the button on the old Transmitter
- The LED will light up blue for 2 seconds and then go out
- After 5 seconds, the LED will flash alternately red and blue
2. Place the new handheld transmitter to the left of the old transmitter
3. Press the button on the new Transmitter and hold it down
- the LED will flash blue slowly.
- If the code is recognised, the LED will flash blue rapidly
- After 2 seconds, the LEDs on the old and new Transmitters will go out
4. The new Transmitter is now working
Resetting the handheld transmitter; the transmitter is assigned a new code(s)
1. Open the battery cover and remove the battery for 10 seconds
2. Press and hold any button on the Transmitter
3. Insert the battery and close the battery cover
- the LED flashes blue slowly for 4 seconds
- the LED flashes blue rapidly for 2 seconds
- The LED lights up blue continuously
4. Release the button on the remote control
5. All radio codes have been reassigned
Setting a fixed code in the Transmitter
1. Open the battery cover and remove the battery for 10 seconds
2. Press and hold any button on the Transmitter
3. Insert the battery and close the battery cover
- the LED flashes blue slowly for 4 seconds
- the LED flashes blue rapidly for 2 seconds
- The LED lights up blue continuously
4. Keep the button on the Transmitter pressed down
- the LED flashes red slowly for 4 seconds
- the LED flashes red rapidly for 2 seconds
- the LED glows red for a long time
5. Close the casing of the handheld transmitter; the fixed 868 MHz code has been activated
Download the instructions here on how to copy a Transmitter code
