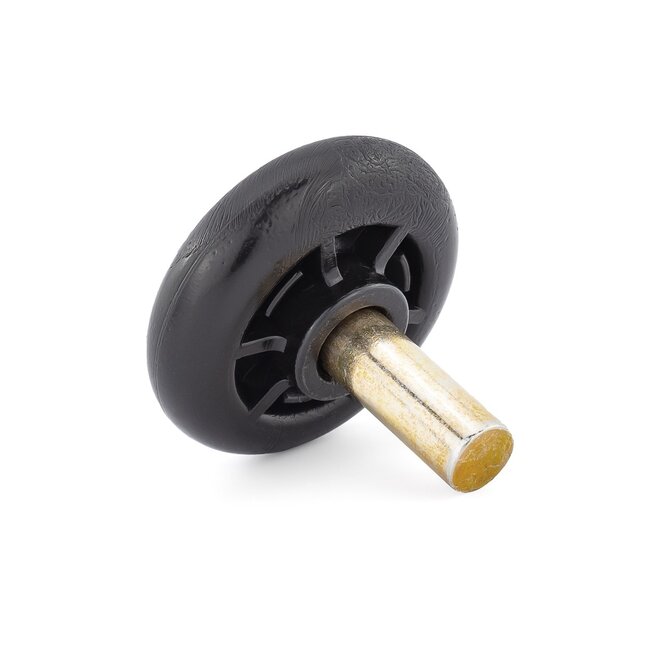

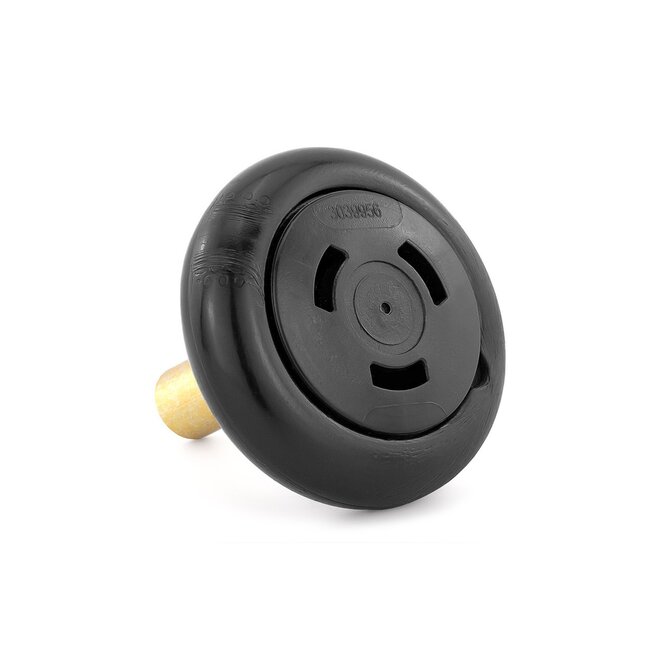

Hörmann impeller with 40 mm Axle/Shaft centre panel 30 and 40 Series sectional doors

Hörmann impeller centre panel series 30 and 40 sectional doors

- for centre door sections of Hörmann sectional doors
- for series: 30 (year of construction from 25.09.1991 to 31.05.1999) and 40 (year of construction from 01.06.1999)
- for hardware types: N, L, BL, Z and BZ (not suitable for H)
- for use with roller carrier 3074403 and old number 3039099
- for use with hinge 3045114 and 3045115

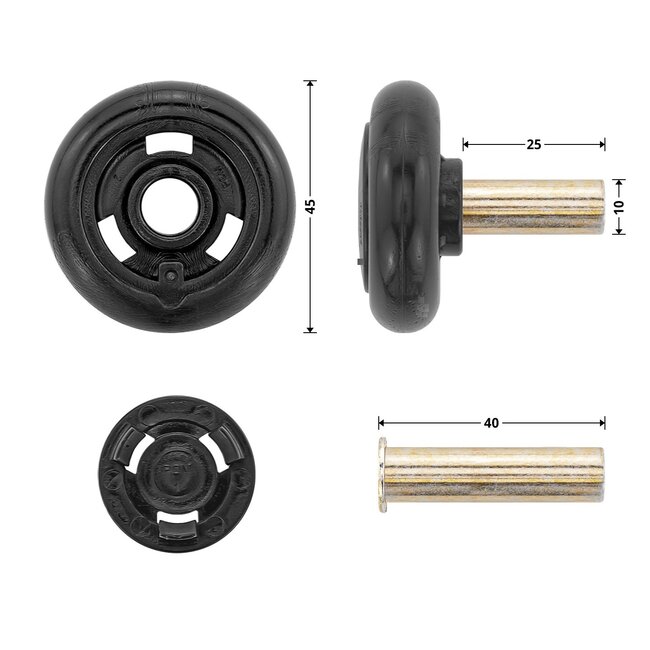

- wheel diameter 45 mm
- diameter Axle/Shaft Ø 10 mm
- Axle/Shaft length 40 mm, protrudes 25 mm
