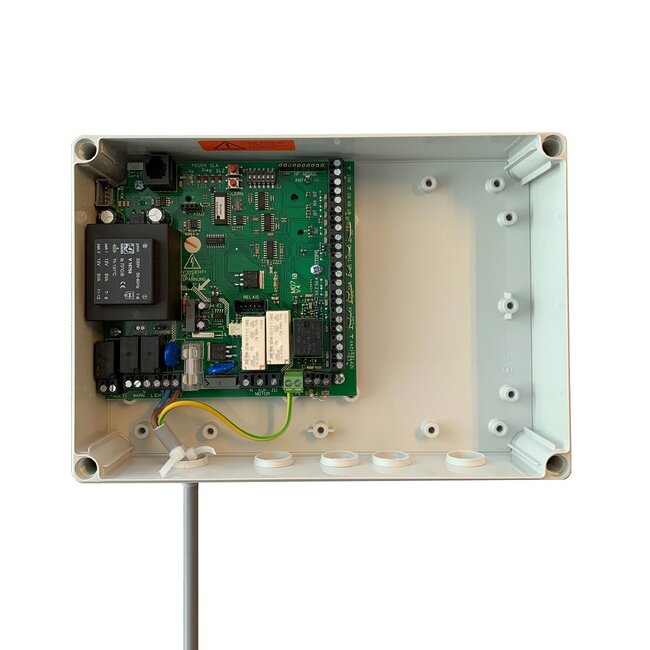

Tedsen MO710AFN universal roller shutter controller

Tedsen MO710AFN roller shutter controller

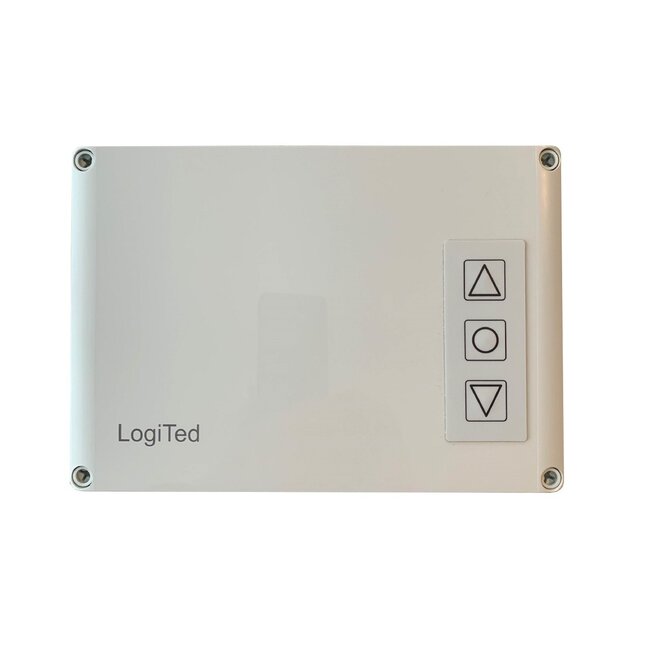

- 3-channel membrane keypad on housing cover
- for 230 V drives up to max. 1.8 kW
- direct or indirect limit switch method or runtime method
- dead-man's mode, self-locking mode and automatic mode
- emergency operation in the event of failure of a safety device
- integrated light barrier monitoring and evaluation for OPEN and CLOSED up to 6 light barrier pairs each
- integrated evaluation of two 8.2 kΩ safety switch strips/circuits or for two optoelectronic safety switch strips/circuits
- automatic start-up and photocell closure
- red-green light and warning light or stoplight function
- plug-in lock for radio receiver
- excl. receiver circuit board (art. no. 1037)
- housing dimensions (W x H x D) 250 x 175 x 75 mm
