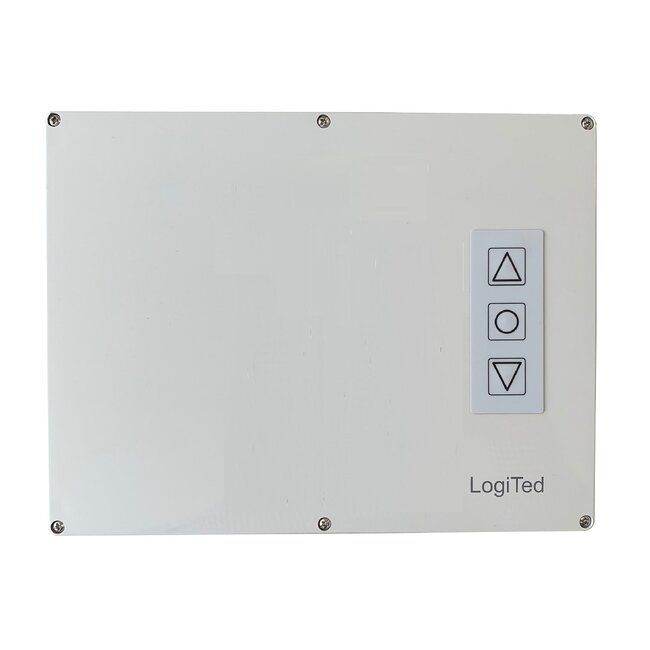

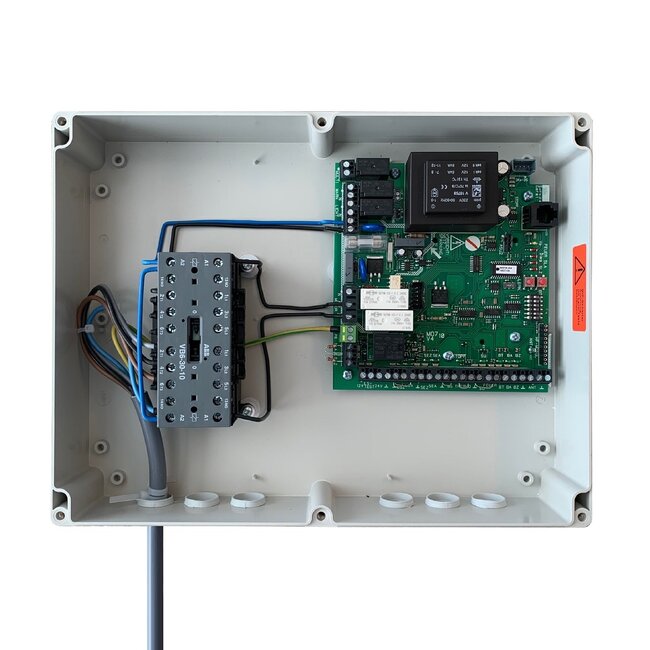

Tedsen MO710RF 400 V / 3 phase roller shutter controller

Tedsen 400-volt/3-phase roller shutter controller MO710RF

- 3-channel membrane keypad on housing cover
- suitable for 400 volt / 3 phase drives
- direct or indirect limit switch method or runtime method
- deadman, self-locking and automatic operation
- emergency operation in the event of failure of a safety device
- integrated light barrier monitoring and evaluation for OPEN and CLOSED up to 6 light barrier pairs each
- integrated evaluation of two 8.2 kΩ safety switch strips/circuits or for two
optoelectronic safety switch strips/circuits
- automatic start-up and photocell closure
- red-green light and warning light or stoplight function
- Plug-in lock for radio receiver
- control box dimensions 300x230x90 mm
