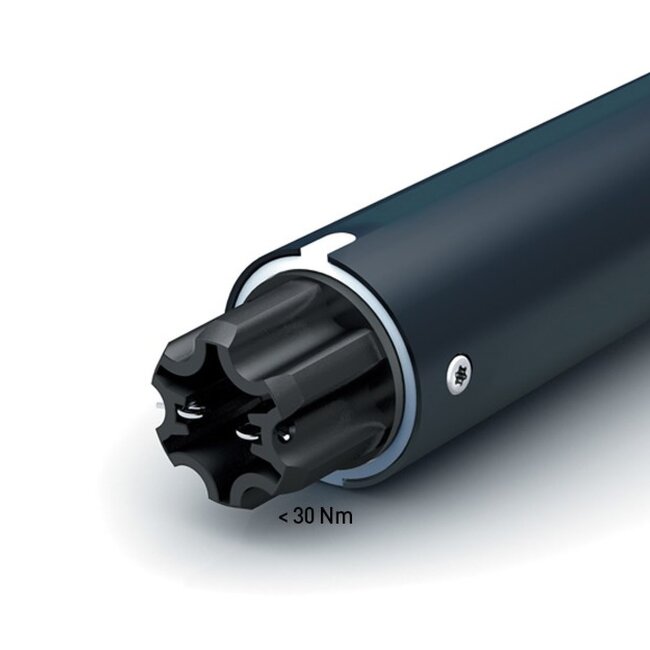

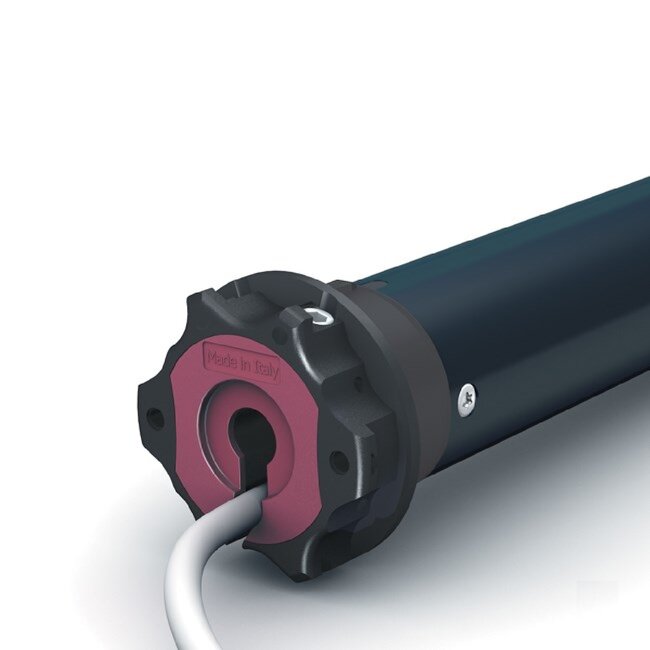

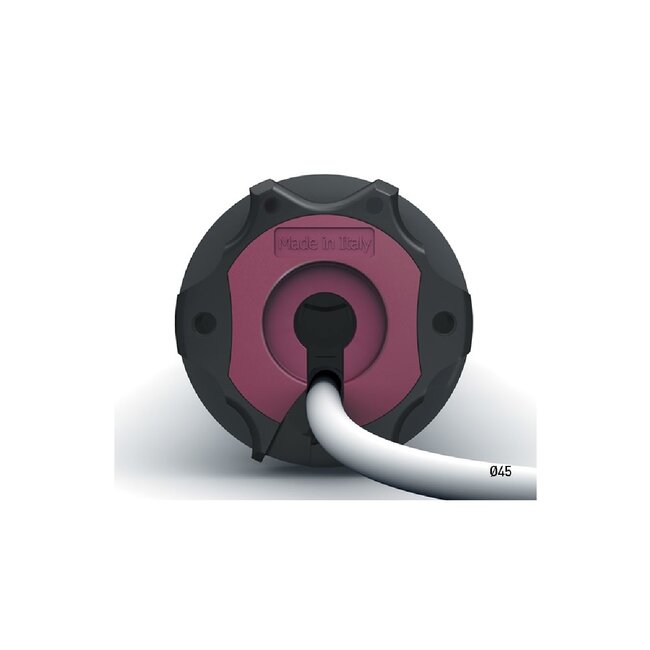

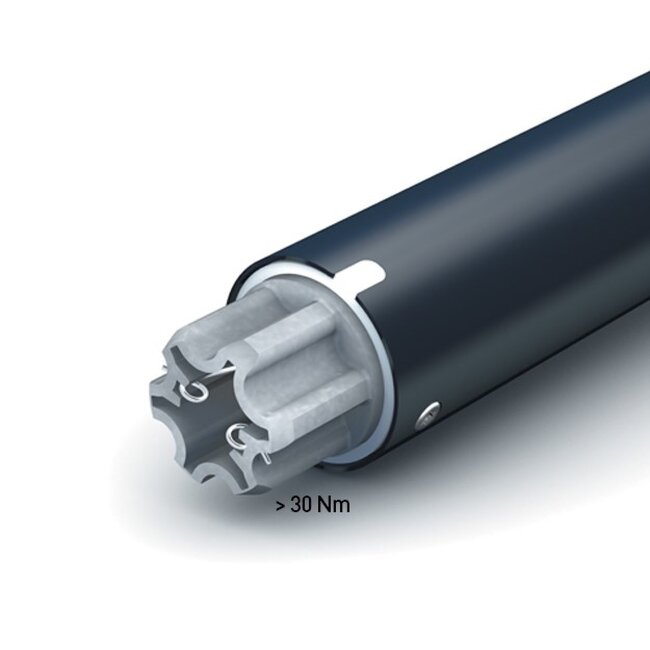

Cherubini Movi RX Ø 45 tubular motor
The Cherubini Movi RX is a powerful tubular motor with mechanical final adjustment and a built-in receiver, suitable for Axle/Shafts from 50 mm diameter. The Motor is available in versions from 10 to 50 Nm, with the speed varying depending on the force (see table below).
A major advantage of this motor is that it can be connected in parallel, without additional relays - ideal for multiple motors on one Control. Final adjustment is easy to set with the clear adjustment screws on the motor housing.
The Movi RX makes a maximum of 25 revolutions, has no obstacle detection, and can be operated by remote control or pulse switch. Thanks to its reliability, smooth operation and easy installation, this motor is perfect for Roller shutters, awnings and Screens.
The Movi RX replaces the former Roll RX and features a double brake for improved safety and control. In addition, it now comes with a 5-metre motor cord as standard.
- Supplied without motor support and adapter set
- formerly the Roll RX

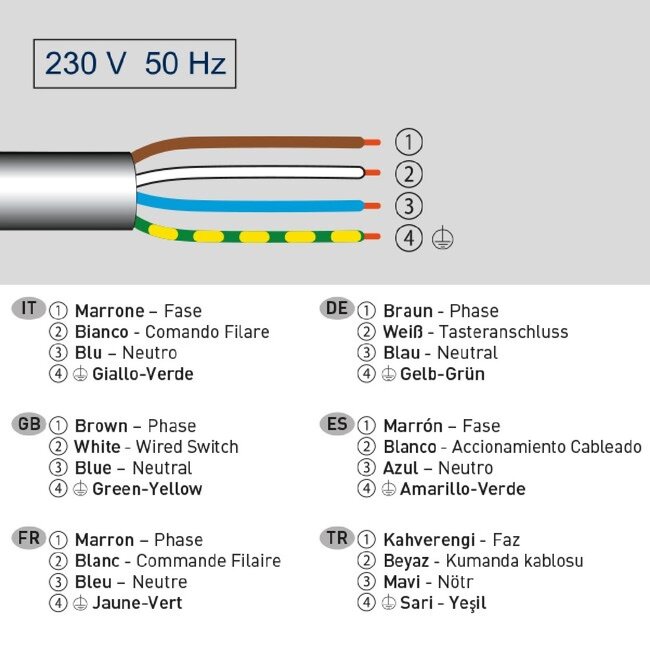

- tubular motor 230 V/50 Hz
- with integrated radio receiver 433 MHz
- in powers from 10 to 40 Nm with a speed of 17 rpm
- the 50 Nm Motor is called a speed of 12 rpm

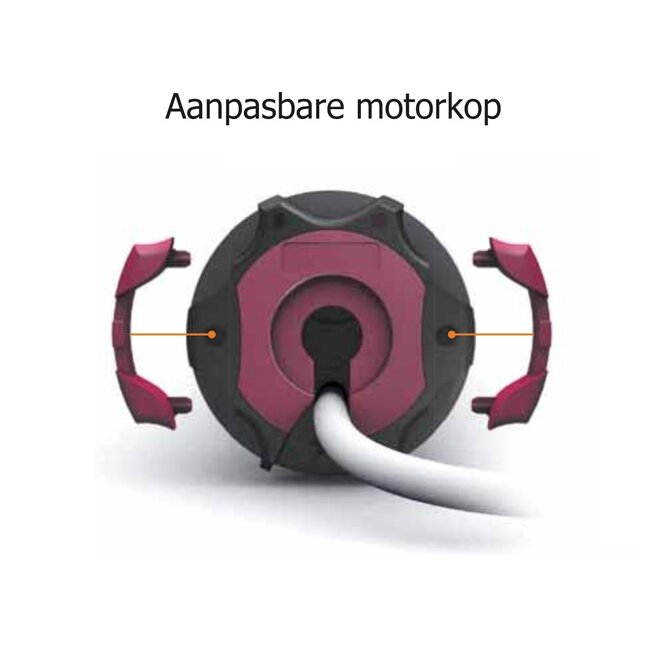

- adjustable motor head
- for standard Cherubini, Faac o Altron motor support
- when removing inserts suitable for Somfy support
- suitable for Roller shutters, Screen and (vertical) blinds
- the Handheld transmitter is easy to program
- simple and precise adjustment of the mechanical end positions
- motors can be switched in parallel
- fits in tubes with a minimum inner diameter of 50 mm
- capacity of the final adjustment 25 revolutions
- supplied as standard with a white cable, length 5 metres
- not suitable for continuous use
download the Cherubini Roll RX tubular motor manual here
Type Cherubini Movi RX Ø 45 tubular motors
- Movi RX Ø 45 10/17 R - 10 Nm - 17 rpm - length 646 mm
- Movi RX Ø 45 20/17 R - 20 Nm - 17 rpm - length 646 mm
- Movi RX Ø 45 30/17 R - 30 Nm - 17 rpm - length 646 mm
- Movi RX Ø 45 40/17 R - 40 Nm - 17 rpm - length 646 mm
- Movi RX Ø 45 50/12 R - 50 Nm - 12 rpm - length 646 mm
Important notes
If you are using this Motor to replace a defective Altron tube motor, you should also order the correct adapter set with it. Also, the old Altron handheld transmitter will not work on this tube motor.
