Cherubini Plug & Play Ø 45 tube motor for Roller shutters

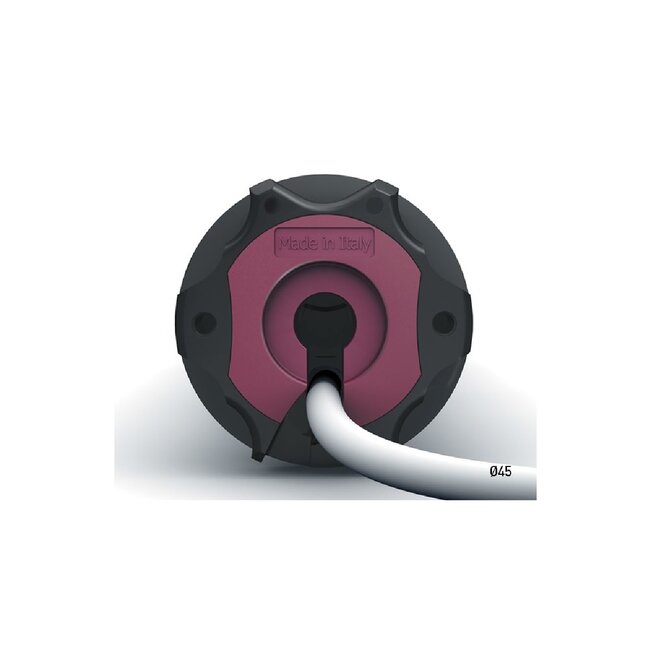

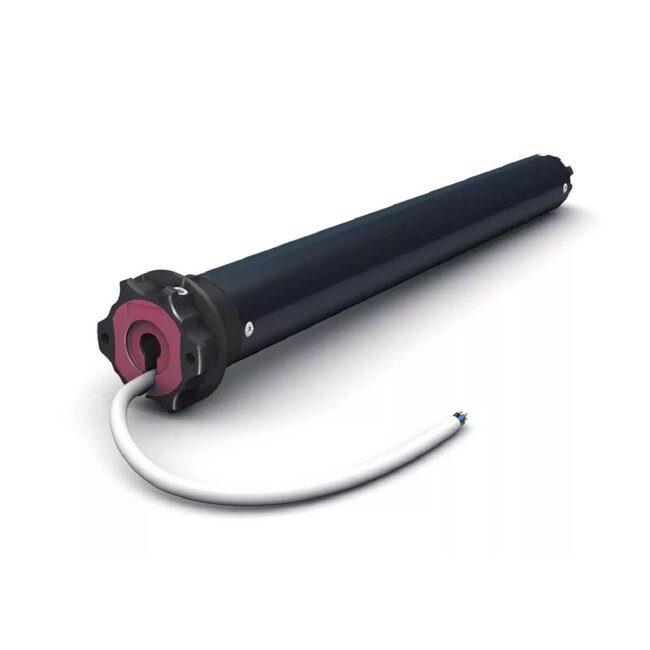

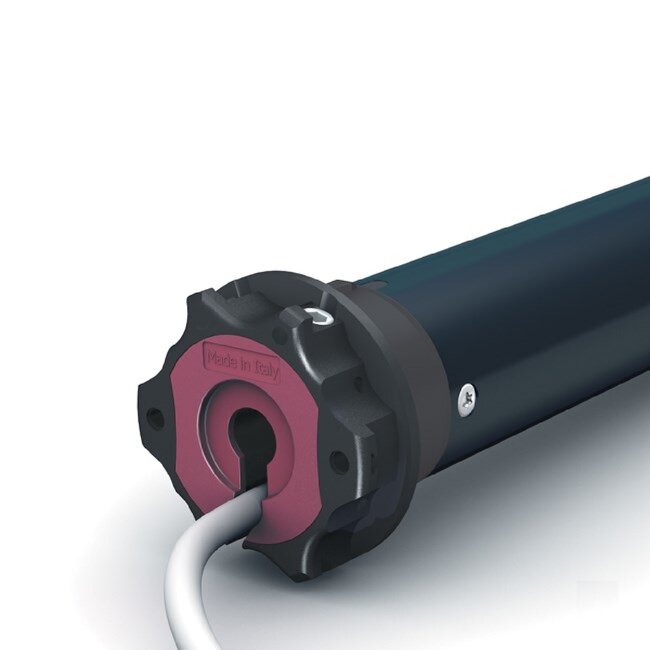

Cherubini Plug & Play Ø 45 mm tubular motor

Plug & Play tubular motor with fully automatic final adjustment. Available in 6, 10, 15 and 25 Nm with 17 rpm. Motor has no teach-in, set-up or reset procedure. Motor is always sensitive and permanently monitors its movement. They have anti-freezing and blocking recognition in both directions. The detection and setting of the end positions is performed automatically by the upper and lower end positions. Plug & Play motors require rigid connections and a fixed upper and lower stop. In the end position, the Motor turns briefly in the opposite direction to remove tension on the material. It is possible to switch the motors in parallel. Control via a one-way switch is possible. Ideal for Roller shutters, they save a lot of time in the production and assembly of roller shutters.

- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- available in 6, 10, 15 and 25 Nm
- speed 17 rpm
- only suitable for roller shutters
- no teach-in or reset procedure necessary
- hindrance detection in both directions
- freeze protection
- lift protection through use of rigid connections
- motors can be connected in parallel
- final adjustment capacity 25 revolutions

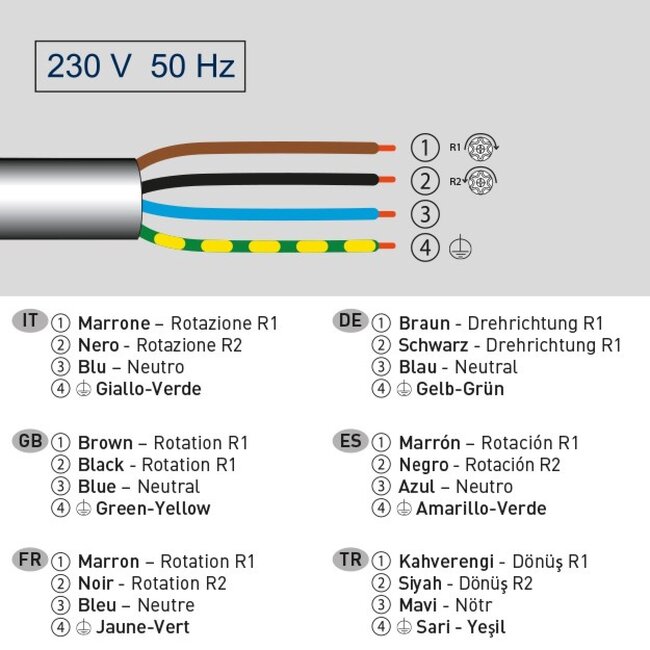

- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use

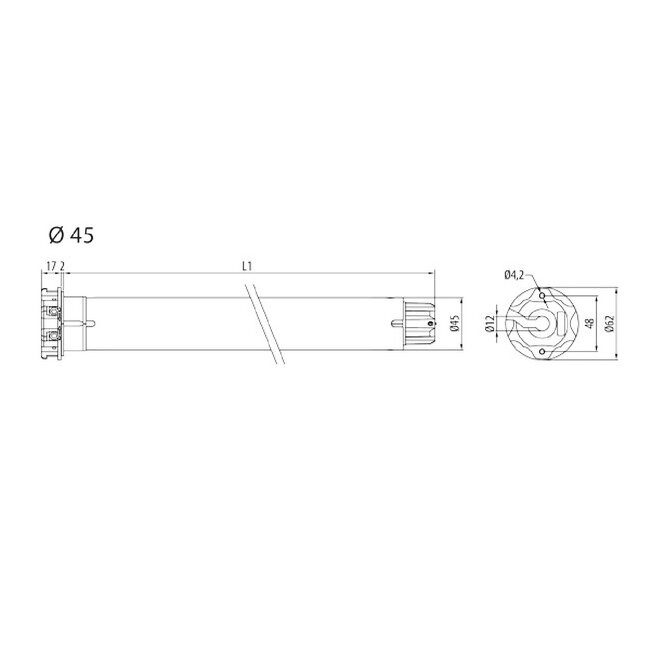

Type Cherubini PP tubular motors
- Cherubini PP - 6 Nm - 17 rpm - length 496 mm
- Cherubini PP - 10 Nm - 17 rpm - length 496 mm
- Cherubini PP - 15 Nm - 17 rpm - length 546 mm
- Cherubini PP - 25 Nm - 17 rpm - length 546 mm

Important notes
Cherubini's Plug & Play tubular motors require rigid joints and fixed top and bottom stops. When using this motor to replace a Faac tubular motor from the TM2 series, you can reuse the adapter set and motor support, when replacing a Faac TM series this is not possible.
