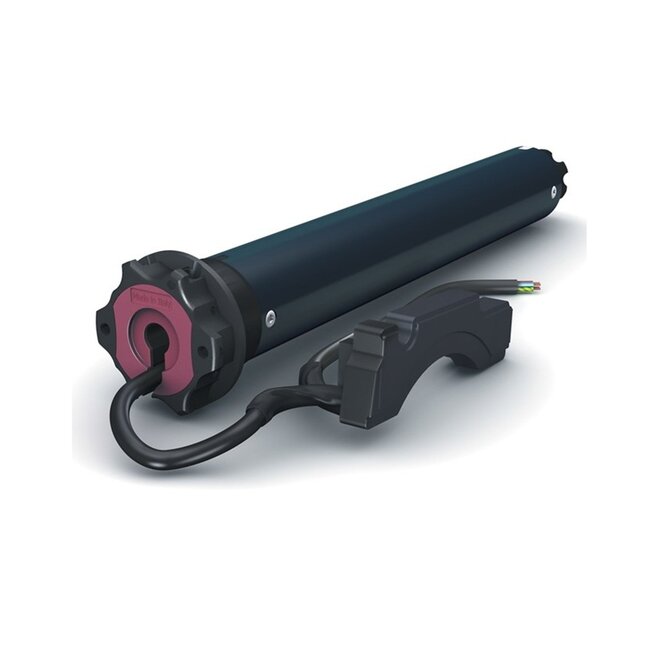

Cherubini Plug & Play Short 6/17 tubular motor

Cherubini Plug & Play Short 6/17 tubular motor

Plug & Play Short tubular motor with fully automatic final adjustment. Only available in 6 Nm with 17 rpm. Motor has no teach-in, set-up or reset procedure. Motor is always sensitive and permanently monitors its movement. They have anti-freezing and blocking recognition in both directions. The detection and setting of the end positions is performed automatically by the upper and lower end positions. Plug & Play motors require rigid connections and a fixed upper and lower stop. In the end position, the Motor turns briefly in the opposite direction to remove tension on the material. It is possible to switch the motors in parallel. Control via a one-way switch is possible. The small motor length of 360 mm makes this motor ideal for small Roller shutters. All this makes this motor a versatile solution!

- Supplied without motor support and adapter set

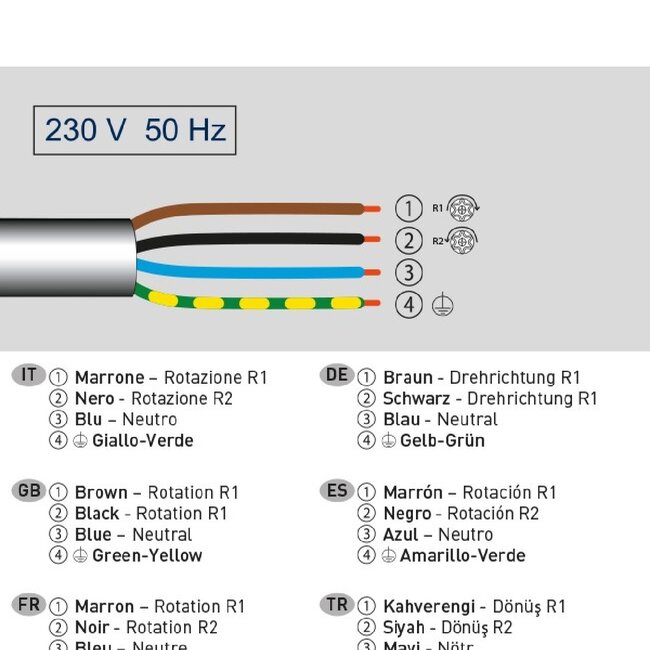

- tubular motor 230 V/50 Hz
- force 6 Nm
- speed 17 rpm

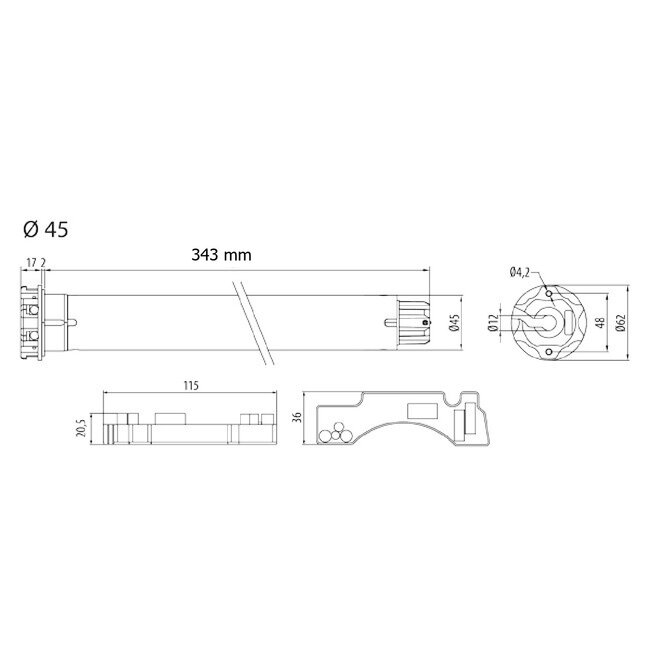

- total length 362 mm
- with external electronics

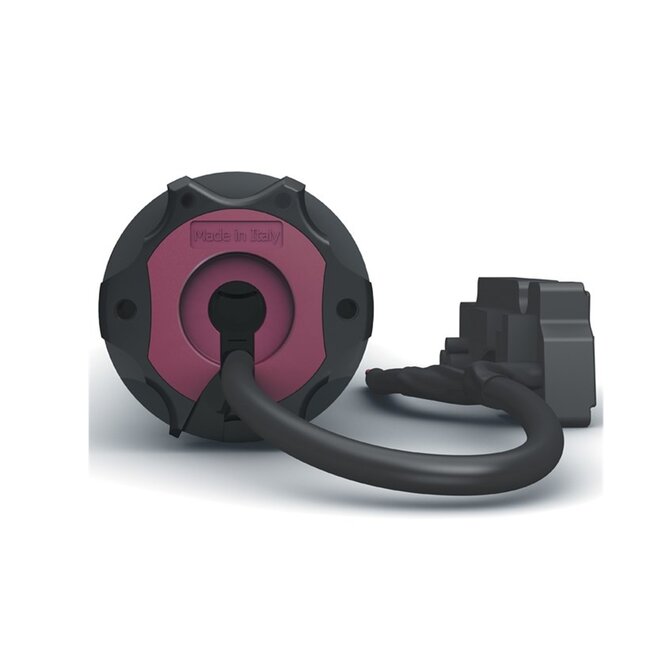

- motor head fits into the most popular motor supports on the market
- suitable for Roller shutters only
- no teach-in or reset procedure necessary
- hindrance detection in both directions
- freeze protection
- lift protection through use of rigid connections
- motors can be connected in parallel
- tubular motor fits into pipe with a minimum inner diameter of 50 mm
- final adjustment capacity 25 revolutions
- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use

Important notes
Cherubini's Plug & Play tube motors require rigid joints and a fixed top and bottom stroke. If you are using this motor to replace a Faac tubular motor from the TM2 series, you can reuse the adapter set and motor support, when replacing a Faac TM series this is not possible.
