RDA RDA 2-channel receiver nt receiver 868 MHz - Keeloq

RDA 2-channel receiver nt receiver 868 MHz - Keeloq

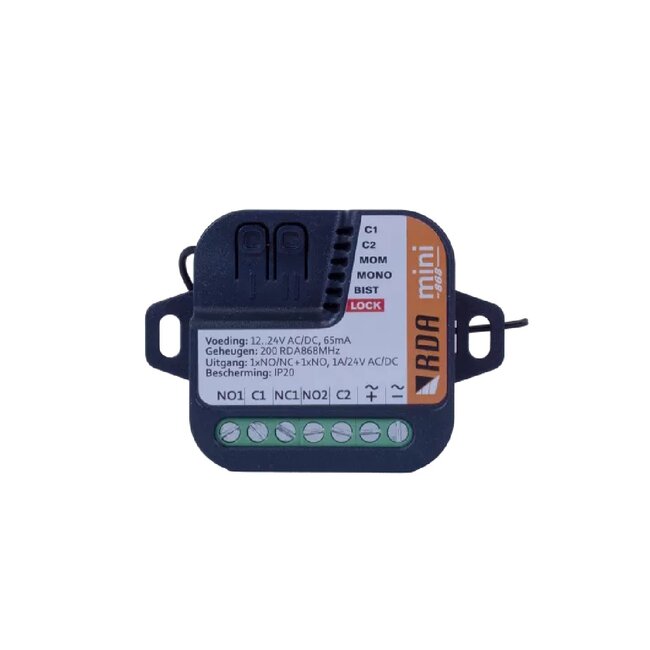

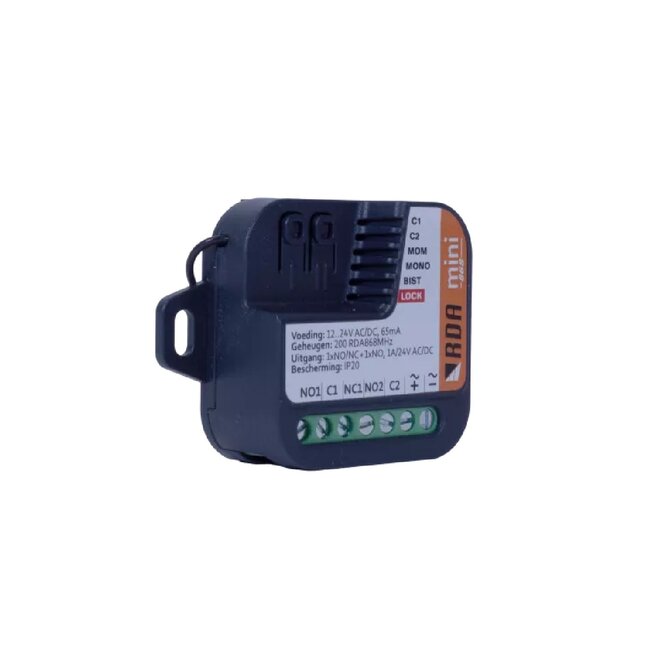

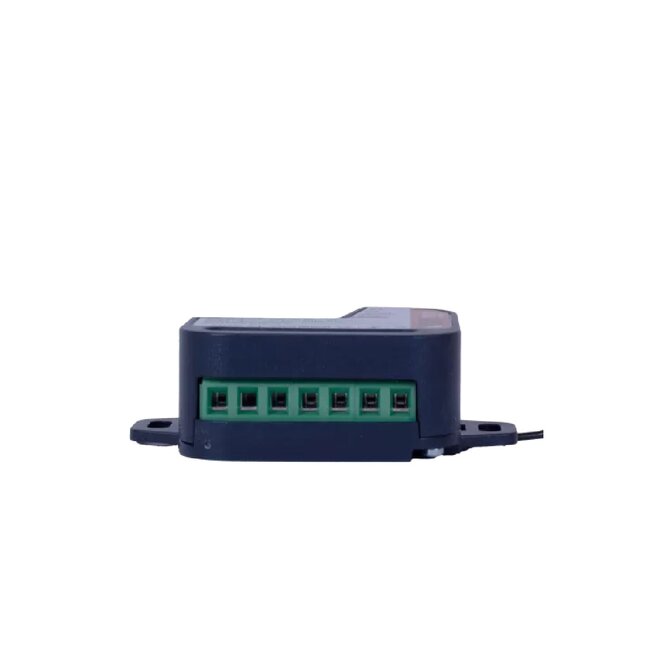

The MINI868-2K receiver is a compact and versatile 2-channel receiver with NO/NC outputs, suitable for mounting in a shielded housing. This receiver is compatible with all RDA handheld transmitters and wireless controllers at 868 MHz, making it widely usable for various automation applications.

With a memory for as many as 200 handheld transmitters, the MINI868-2K offers sufficient capacity for both private and professional installations. Thanks to the reliable KeeLoq rolling code technology, you are guaranteed safe and interference-free operation with an excellent range.

For each output, you can easily set the desired type of operation via the programming button and LED indication. You can choose from monostable, bistable or time-controlled, depending on the application. In addition, the receiver is equipped with a service lock, allowing Handheld transmitters to be temporarily blocked during maintenance or works, which is very safe.

A compact but powerful solution for controlling Roller shutters, awnings, gates and other electrical applications.

Key features

• 2-channel receiver (NO/NC)
• Suitable for RDA systems at 868 MHz
• Memory for 200 handheld transmitters
• KeeLoq rolling code for optimum security
• Adjustable operation, mono, bistable or time function
• Equipped with service lock for maintenance
• Compact size, ideal for built-in installation

Specifications

• Article number, 521645.000098
• Number of channels, 2
• Number of memory locations, 200
• Radio frequency, 868 MHz KeeLoq
• Supply voltage, 12 24V AC DC
• Degree of protection, IP20
• Dimensions receiver, 46 x 46 x 22 mm
• Weight, 50 grammes
• Temperature range, -20°C to +55°C
• Packaging dimensions, 190 x 80 x 50 mm
