RDA Built-in transmitter HID868, 4-channel, 868MHz - Keeloq

RDA built-in transmitter 4-channel 868 MHz

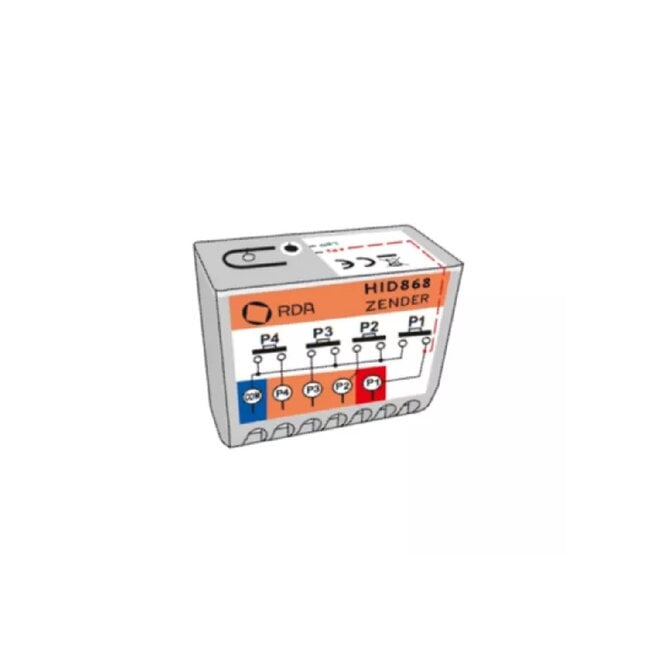

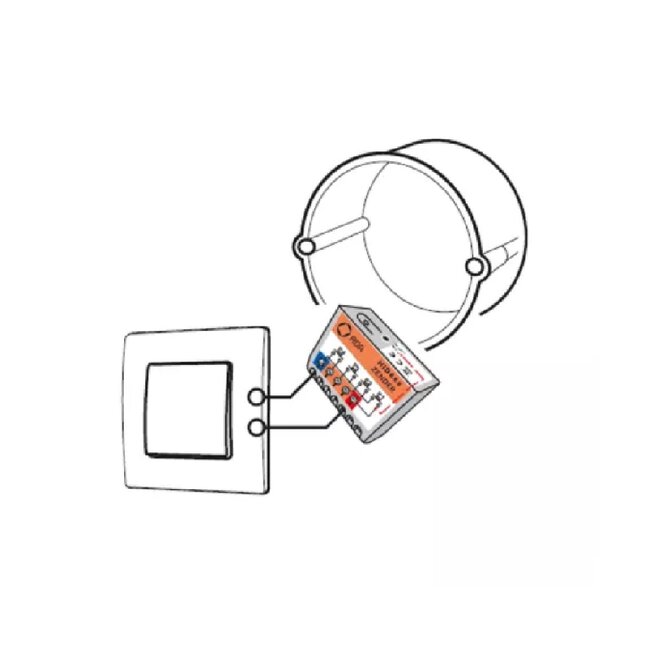

The HID868 flush-mounted transmitter is a compact, battery-powered dry-contact transmitter specially designed for mounting in standard flush-mounted boxes. By connecting a pulse switch, such as a roller shutter switch or doorbell, this transmitter can be easily integrated into existing installations.

The HID868 operates at 868 MHz with KeeLoq rolling code and is compatible with all RDA receivers. This makes it widely usable within alarm systems, gate automation and smart home applications, among others.

With support for 4 channels, this transmitter offers flexibility for controlling multiple functions. There is a practical test button on the housing that allows you to check the range in advance, ensuring optimal operation before final installation.

Thanks to its compact size and power supply via a CR2032 battery, the HID868 is an efficient and easy-to-install solution for wireless switching of various applications.

Key features

• Built-in dry-contact transmitter (battery-powered)
• 4 channels for multiple applications
• Suitable for RDA systems at 868 MHz
• KeeLoq rolling code for secure communication
• Works with pulse pressure switch (e.g. Roller shutter or bell)
• Test button for range check before mounting
• Compact size for flush-mounted boxes

Specifications

• Article number, 521645.000007
• Number of channels, 4
• Radio frequency, 868 MHz KeeLoq
• Range, up to 250 metres
• Supply voltage, 3V
• Battery type, CR2032
• Degree of protection, IP20
• Dimensions, 44 x 37 x 22 mm
• Weight, 25 grams
• Temperature range, -20°C to +55°C
