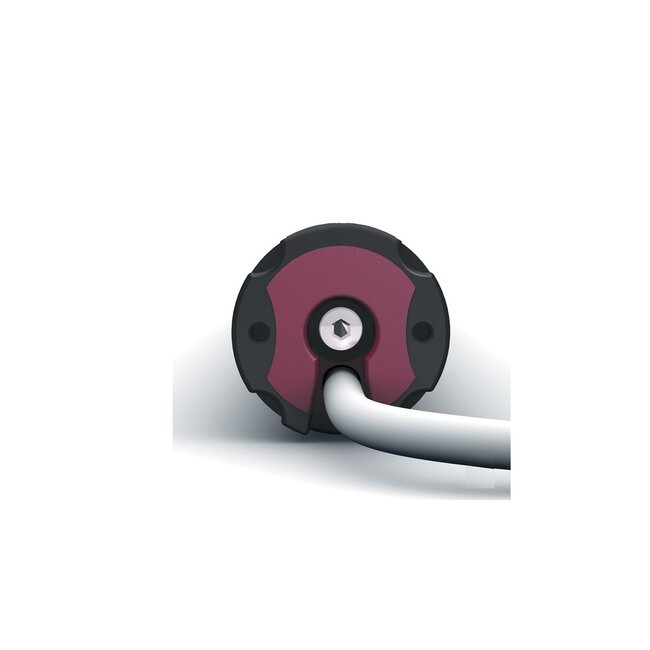

Cherubini Roll Ø 35 tubular motor with mechanical adjustment

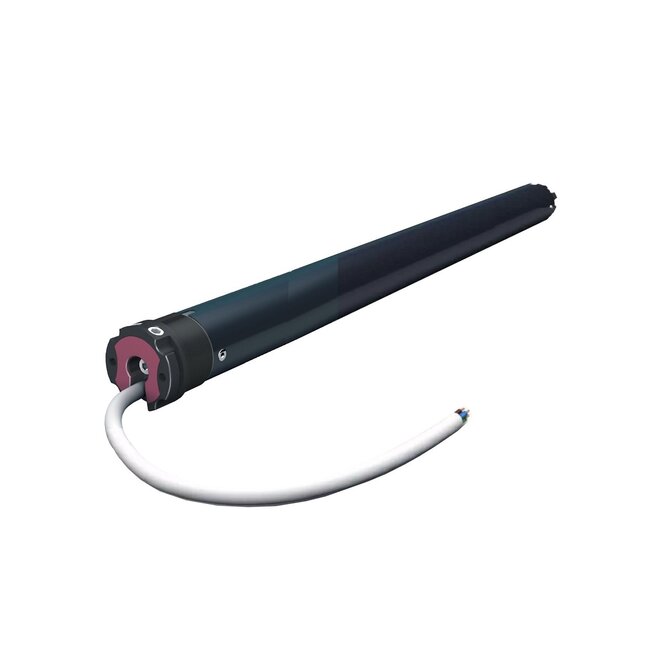

Cherubini Roll Ø 35 tubular motor

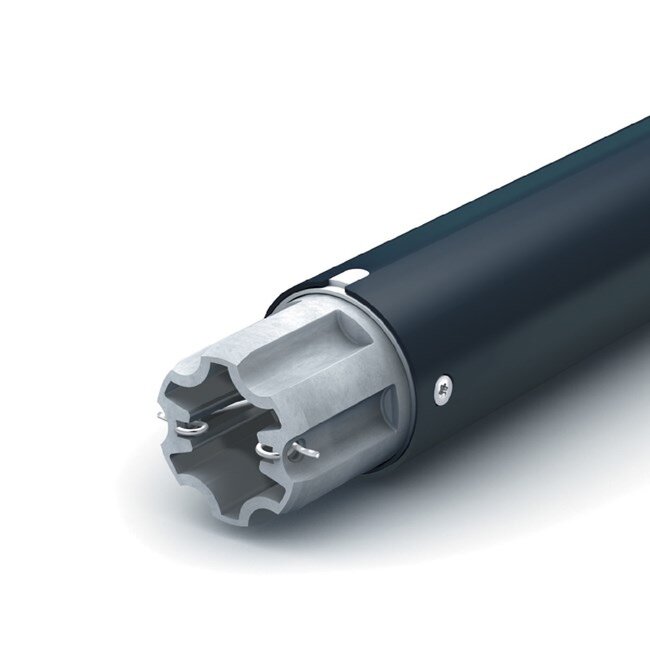

Cherubini Roll Ø 35 motor is ideal for Screen and Roller shutters with an 8-sided 40 mm Axle/Shaft, the tubular motor features reliable and simple mechanical final adjustment

- Supplied without motor support and adapter set

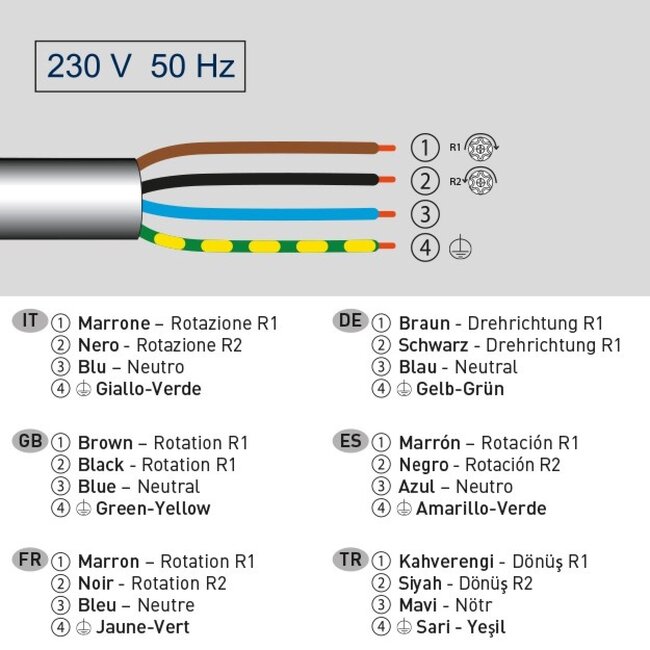

- tubular motor 230 V/50 Hz
- available in 5, 9 and 13 Nm
- motor head with adapter fit in the most popular motor supports on the market
- suitable for roller shutters and screens

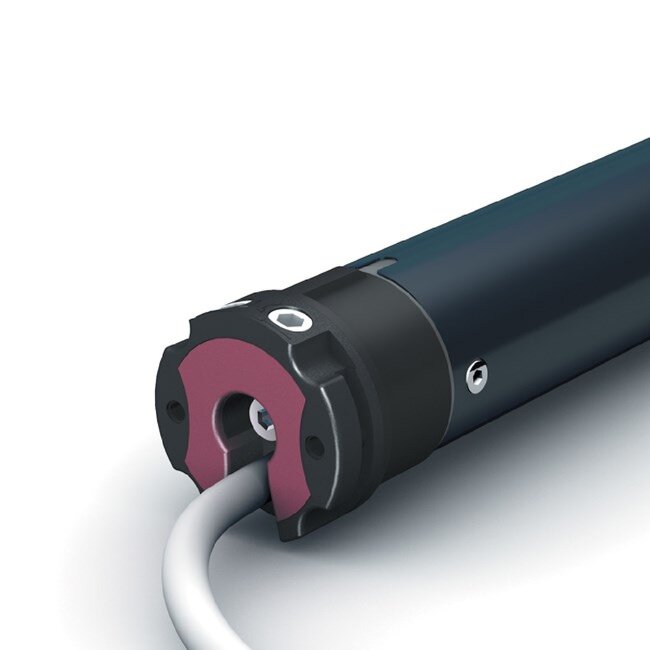

- simple and precise adjustment of the end positions
- Motor cannot be connected in parallel
- the tubular motor fits in tubes with a minimum inner diameter of 40 mm
- end position adjustment capacity 35 revolutions
- white cable, length 2.5 metres, supplied as standard
- not suitable for continuous use

Type Cherubini Roll Ø 35 tubular motors

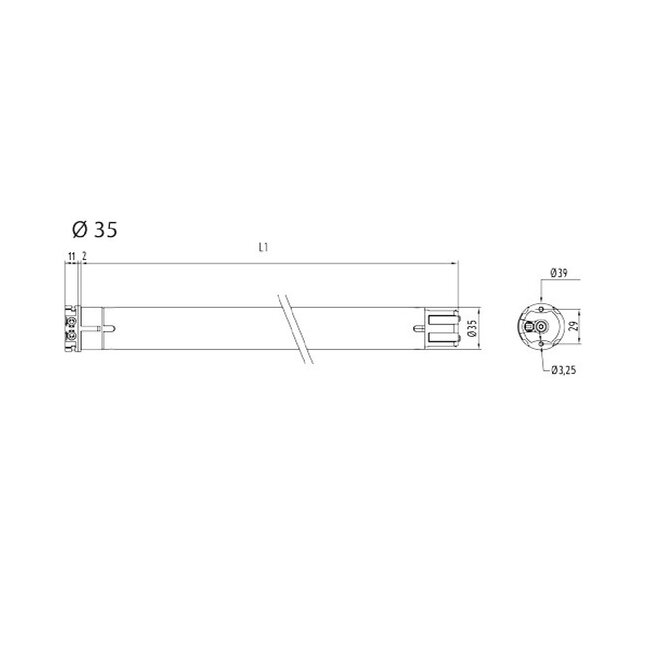

- Roll Ø 35 5/30 - 5 Nm - 30 rpm - length 460 mm
- Roll Ø 35 9/16 - 9 Nm - 16 rpm - length 460 mm
- Roll Ø 35 13/10 - 13 Nm - 10 rpm - length 460 mm
