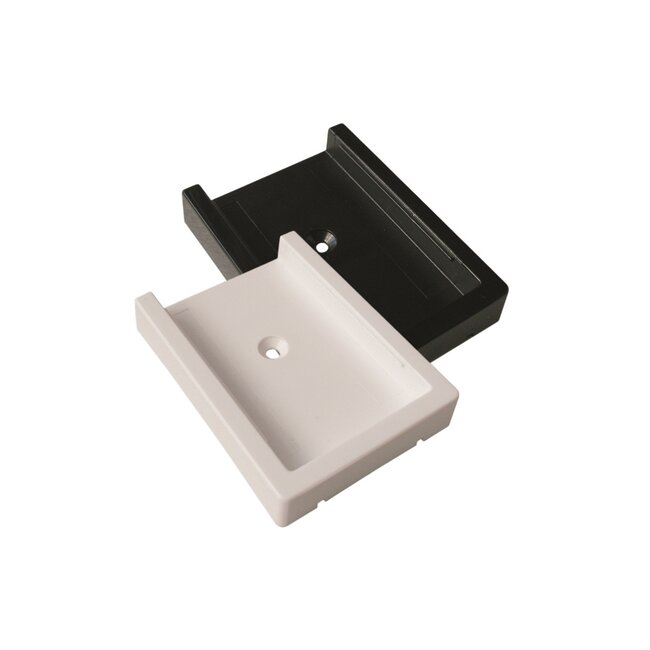

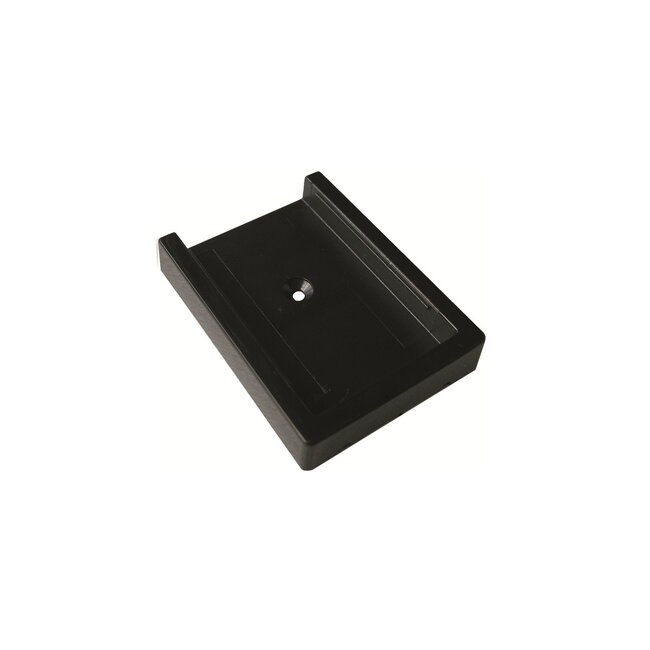

Eldat RT30/RT32/RT34 Wall Mount

Eldat RT30 EasyWave – 4-channel mini handheld transmitter

 - also suitable for controlling Altron RS or RadioBack tubular motors
 - 4-channel handheld transmitter
 - frequency 868.3 MHz
 - available in black and white
 - supplied with wall bracket and battery
 - Dimensions: 37 x 59 x 12 mm (W x H x D)

Programming an additional Eldat RT30 EasyWave mini handheld transmitter
 - Press and hold the STOP button on an already programmed Transmitter,
   until the Motor confirms this by running up and down briefly
 - Within 5 seconds, briefly press the UP button and then briefly
   press the DOWN button on the already programmed Transmitter; the Motor
   will confirm this with a brief up-and-down movement
 - within 5 seconds, briefly press the UP button on the new Transmitter,
   the Motor will then confirm that the new Transmitter has been
   programmed by briefly moving up and down

Programming an additional Eldat handheld transmitter into a pre-2005 Altron motor
 - hold down the OP button on the new Transmitter until the motor
   confirms this with a brief up-and-down movement
 - Within 5 seconds, press the OP button on the already programmed
   Transmitter, then press the OP button on the new Transmitter once; the motor
   will confirm this with a brief up-and-down movement
 - The new Transmitter is now programmed

If you no longer have a working Handheld transmitter to copy, please download the Altron Radioblack tubular motor manual here.
