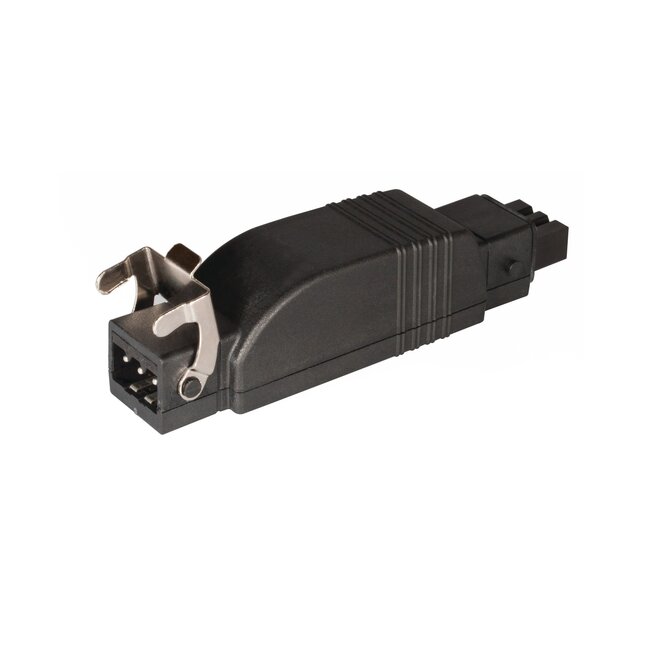

Somfy SLIM io Roller shutter receiver
The Somfy SLIM io receiver for Roller shutters allows easy conversion of a standard wired tubular motor to wireless io-homecontrol® control. Ideal for modernising existing roller shutter installations without additional wiring.
The receiver is connected directly via Hirschmann plugs, which ensures a quick and error-free installation without a junction box. Thanks to the compact design, the receiver can be discreetly concealed in or near the roller shutter box.
After installation, you set the motor's running time. The receiver remembers the last command executed, providing practical feedback in use. One intermediate position can be set for extra comfort.
Technical specifications
- frequency 868.420 MHz / 869.700 MHz
- Somfy io-homecontrol protocol
- power supply 230V AC / 50Hz
- voltage range 195,5V - 255V
- standby consumption 0,42 W
- maximum current accessories 3A
- protection class IP54
- dimensions 130 x 32 x 33 mm
- operating temperature -20°C to +70°C
- weight 100 grams
- Colour black
Installation benefits
- fast installation without junction box

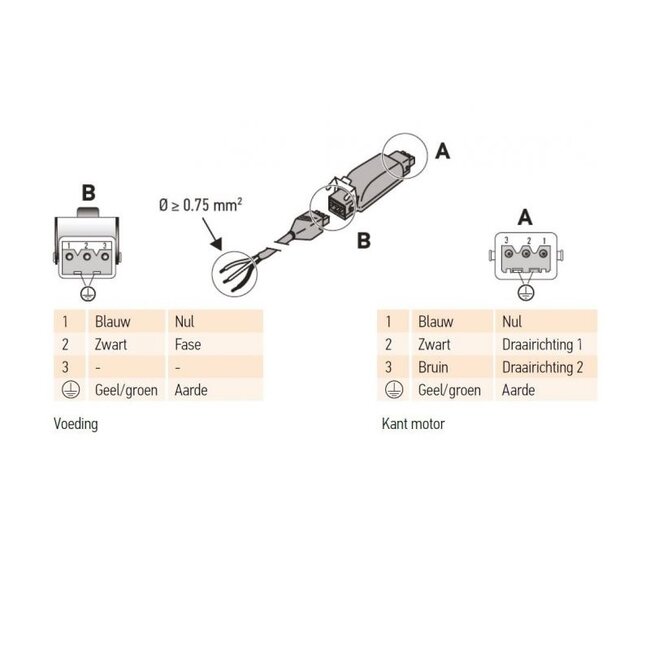

- direct connection with Hirschmann plugs
- neutral (blue) on 1 and phase (brown) on 2
- no extra cabling required
- can be combined with sun, wind and rain sensors
- same operating logic as Somfy Oximo 50 io and Altus 50 io motors
Important to know
- the runtime must be set during configuration
- the receiver does not return an exact position, but remembers the last command
- use motor cable with moulded plug article 5345
