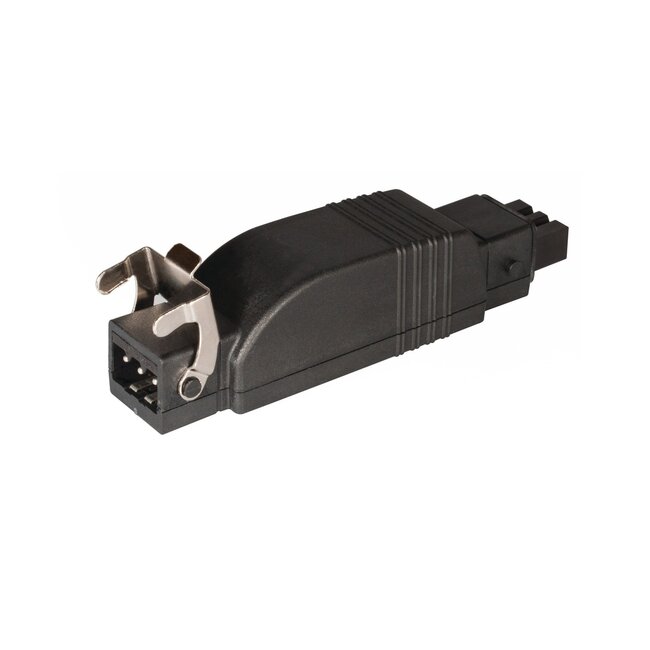

Somfy SLIM io awning receiver
The Somfy SLIM io receiver is a compact external io-homecontrol® receiver, specially designed to control blinds with a standard wired tubular motor wirelessly. Ideal for upgrading existing installations to the Somfy io platform, without additional wiring.
Thanks to the Hirschmann connection, installation is quick and error-free. A junction box is not required, saving time and ensuring a neat finish. The receiver is compact and discreetly designed, making it easy to conceal near the awning.
After installation, you set the motor's runtime. Based on this, the receiver provides a position feedback. This way, you combine the convenience of wireless control with the reliability of a wired Motor.
Technical specifications
- frequency 868.250 / 868.950 / 869.850 MHz
- Somfy io-homecontrol protocol
- connect up to 9 transmitters n sensors
- power supply 230V AC / 50Hz
- standby consumption 0.42 W
- maximum switching capacity 690 W
- protection class IP54
- Dimensions 130 x 32 mm
- Colour black
- operating temperature -20°C to +70°C
Installation benefits
- direct connection with Hirschmann plug
- neutral (blue) at terminal 1 and phase (brown) at terminal 2
- no junction box required
- quick and clear installation
- can be combined with sun, wind and rain sensors
- same operating logic as Somfy Sunea io and Sunilus io motors
