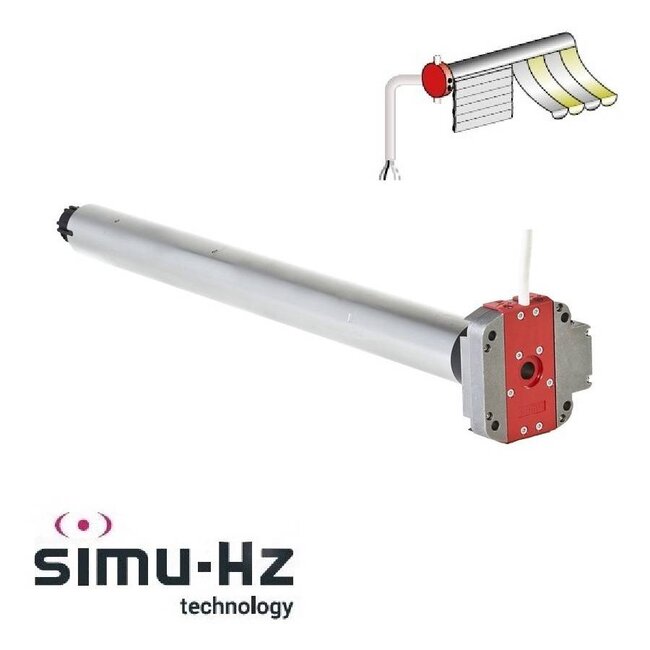

The Simu T6 DMI is a tubular motor with emergency hand control and integrated receiver, operated by a Switch. Motor can be used in hoods, drop-down screens, screens and roller shutters. Precise adjustment with push buttons. In strength... Read more.
- supplied without motor support and adapter set
- supply voltage 230V - 50 Hz
- available in sizes from 60 to 120 Nm
- minimum tube diameter: 60 mm x 1.5 mm
- speed 12 rpm
- maximum runtime 4 minutes
- Control with Hz hand or wall transmitter
- tubular motor with integrated emergency hand control
- proportional limit switch setting accessible from 2 sides
- simple fixing of drive flange by click system
- low noise level
- limit switch setting capacity: 30 revolutions
- supplied with 3-wire white cable, length 2.5 m, as standard
- adjustment on motor head
- always use safety clip + screw with the adapter set
- emergency hand control on both sides
- accessories Somfy LT60 tubular motors or Simu T6
