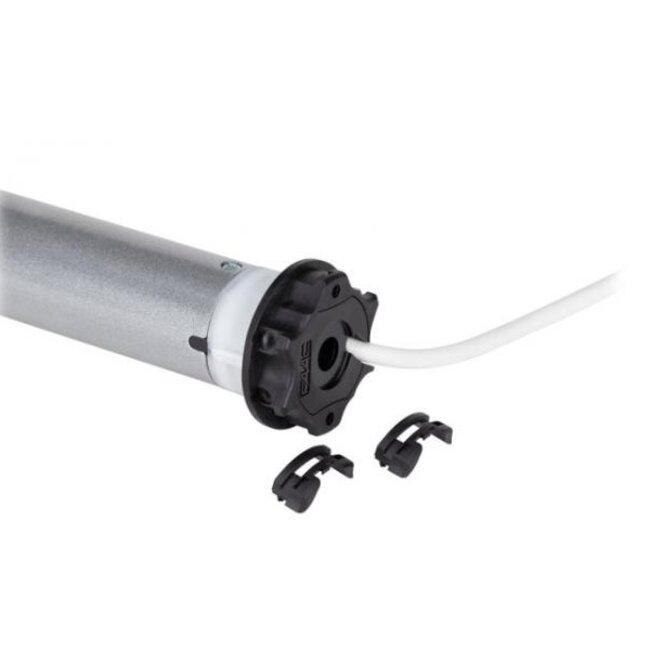

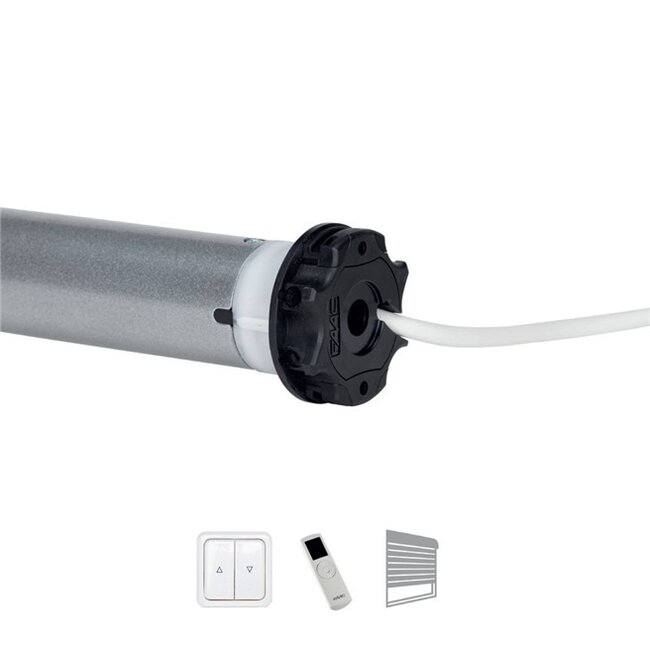

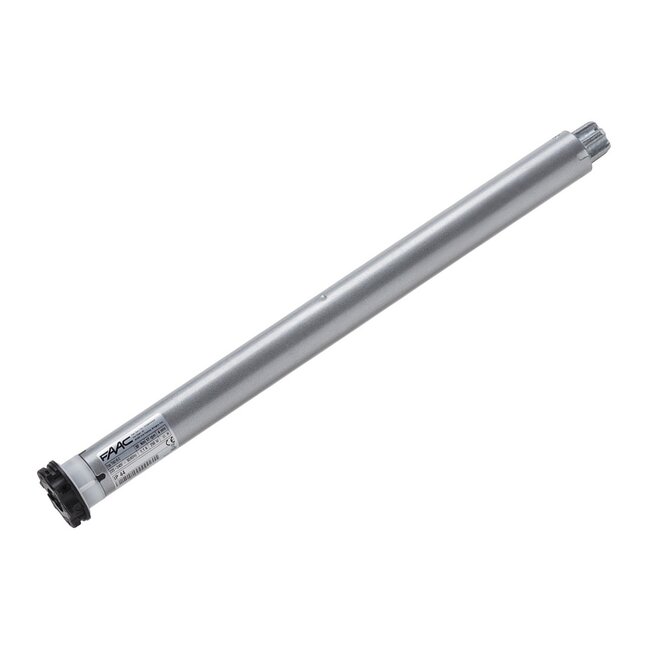

Faac TM2 45 PPR Plug & Play tube motor with receiver
As of early 2024, Faac has stopped supplying motors for residential roller shutters and blinds. These products are now continued by Cherubini, the company that has always manufactured the motors for Faac. The Cherubini tube motors have the same specifications as the Faac tube motors, if the right power is no longer available as Cherubini, you can apply a power higher.
Plug & Play tube motor with fully automatic final adjustment and an integrated 433 MHz receiver. Available in 10 to 32 Nm with 17 rpm. Motor has no teach-in, set-up or reset procedure. The motors are always sensitive and permanently monitor their travel. They have anti-freeze and obstacle detection in both directions. The detection and setting of end positions is performed automatically by the upper and lower ends. The unique motor head is suitable in the most popular motor supports available on the market. The integrated radio receiver increases operating comfort. All this makes this Motor a versatile solution!
- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- available in 10 to 32 Nm
- speed 17 rpm
- Motor with integrated receiver
- Handheld transmitter that is easy to program

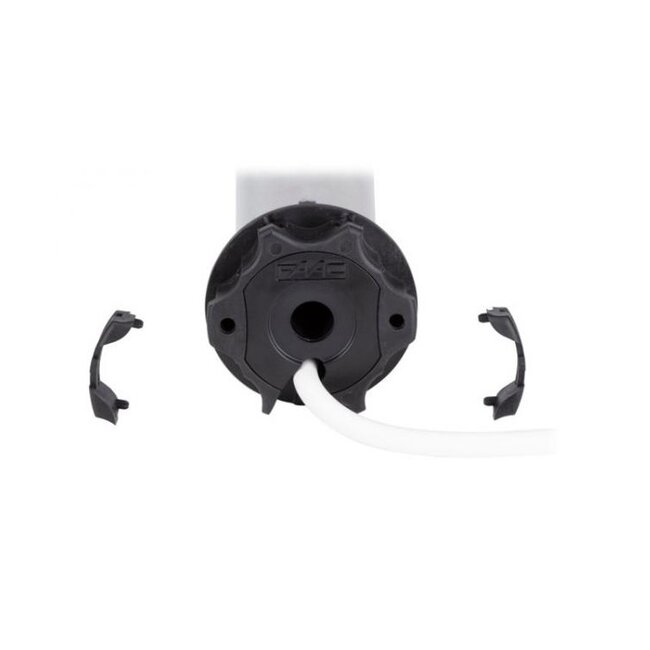

- motor head fits into the most popular motor supports on the market
- suitable for Roller shutters only
- no teach-in or reset procedure necessary
- obstacle detection in both directions
- freeze protection
- lift protection through use of rigid connections
- motors can be connected in parallel
- Faac TM2 45 fits into pipe with a minimum inner diameter of 50 mm
- final adjustment capacity 25 revolutions
- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use
Type Faac TM2 45 PPR tube motors
- Faac TM2 45 10/17 PPR - 10 Nm - 17 rpm - length 546 mm
- Faac TM2 45 15/17 PPR - 15 Nm - 17 rpm - length 546 mm
- Faac TM2 45 25/17 PPR - 25 Nm - 17 rpm - length 586 mm
- Faac TM2 45 32/17 PPR - 32 Nm - 17 rpm - length 586 mm
Important notes
If you are using this motor to replace a defective Altron Black or Altron RadioBlack tubular motor, you should also order the correct adapter set and motor support with it. The motor support and adapter set of Altron and Faac TM2 tubular motors are not compatible with each other.
Faac Plug & Play tubular motors require rigid connections and a fixed top and bottom stroke.
The old Faac TM and Altron handheld transmitters are also not compatible with the new Faac TM2 remote controls.
