Cherubini Wave RX Ø 58 tubular motor with receiver and electronic adjustment

Cherubini Wave RX Ø 58 tubular motor

Specially designed for blinds, this tubular motor has electronic final adjustment, a built-in receiver and the possibility of connecting a pulse push button. Settings can be easily and precisely adjusted using a Handheld transmitter, using encoder technology for optimal accuracy and reliability. The system uses a secure Rolling Code decoder system and offers both manual and semi-automatic options for setting end positions. It also features additional functions such as fabric stretch compensation and adjustable obstacle detection.

- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- with integrated radio receiver 433 MHz
- memory for 15 handheld transmitters
- available in 85, 100 & 120 Nm
- speed of 11 or 17 rpm, depending on the force
- steel starhead motor head
- suitable for hoods, screens and pergolas
- easily programmable handheld transmitter
- manual and semi-automatic setting of the end positions
- fabric stretch compensation for closed cassette awnings
- obstacle detection during upward movement, sensitivity setting on 3 levels
- possibility of storing an intermediate position
- motors can be switched in parallel
- tubular motor fits tubes with a minimum inner diameter of 50 mm
- final adjustment capacity 35 revolutions

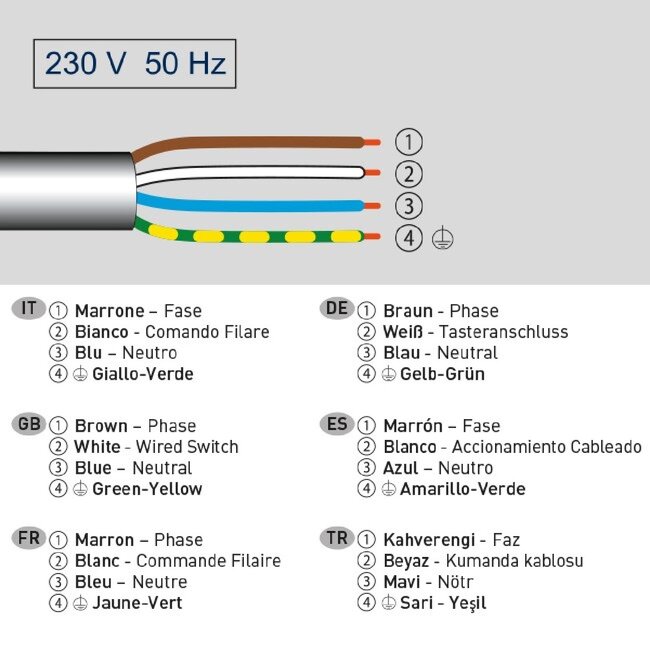

- white cable, length 2.5 metres, supplied as standard
- not suitable for continuous use

Download here the manual of the Cherubini Wave RX tubular motor
Go here to the installation video on Youtube

Type Cherubini Wave RX Ø 58 tubular motor
- Cherubini Wave RX 85/17 - 85 Nm - 17 rpm - 375 Watt - length 646 mm
- Cherubini Wave RX 100/11 - 100 Nm - 11 rpm - 360 Watt - length 646 mm
- Cherubini Wave RX 120/11 - 120 Nm - 11 rpm - 415 Watt - length 646 mm
