Cherubini Plug & Play RX Ø 45 tubular motor for Roller shutters

Cherubini Plug & Play RX Ø 45 tubular motor for Roller shutters

Plug & Play tubular motor with fully automatic final adjustment and an integrated 433 MHz receiver. Available in 6 to 32 Nm with 17 rpm. Motor has no teach-in, set-up or reset procedure. The motors are always sensitive and permanently monitor their travel. They have anti-freeze and obstacle detection in both directions. The detection and setting of end positions is performed automatically by the upper and lower ends. The unique motor head is suitable in the most popular motor supports available on the market. The integrated radio receiver increases operating comfort. All this makes this Motor a versatile solution!

- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- available in 6 to 32 Nm
- speed 17 rpm
- Motor with integrated receiver
- Handheld transmitter that is easy to program

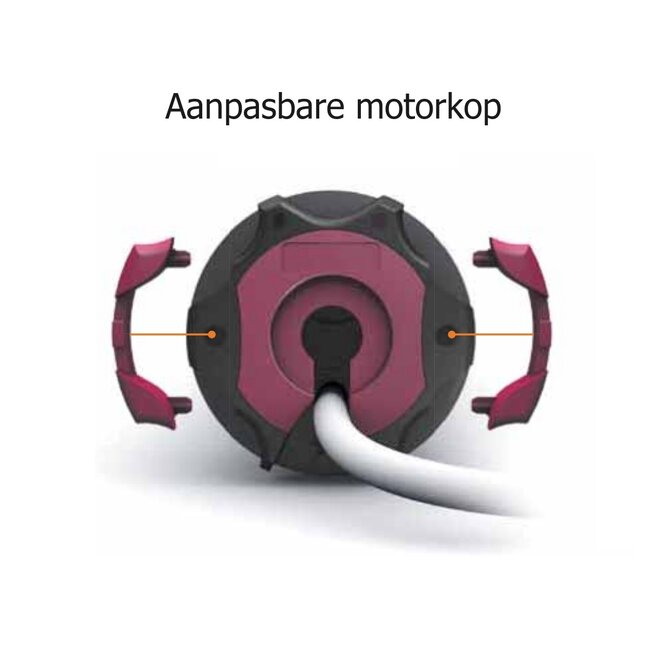

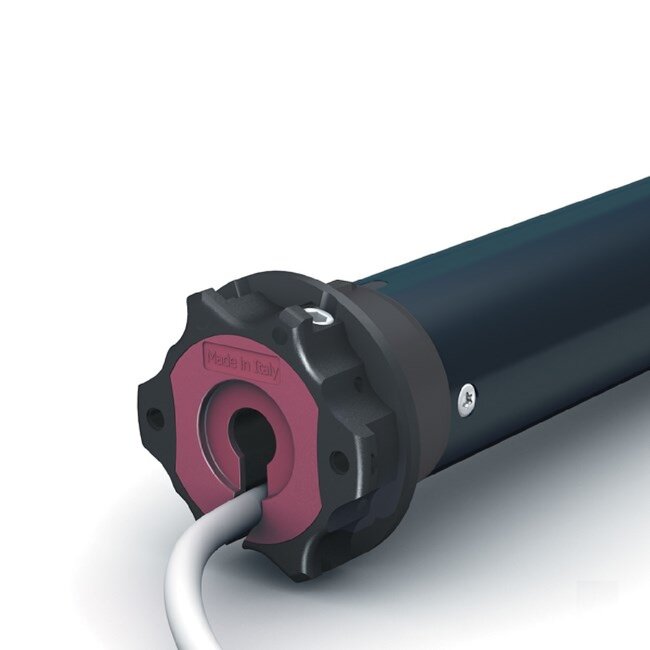

- motor head fits into the most popular motor supports on the market
- suitable for Roller shutters only
- no teach-in or reset procedure necessary
- obstacle detection in both directions
- freeze protection
- lift protection through use of rigid connections
- motors can be connected in parallel
- final adjustment capacity 25 revolutions

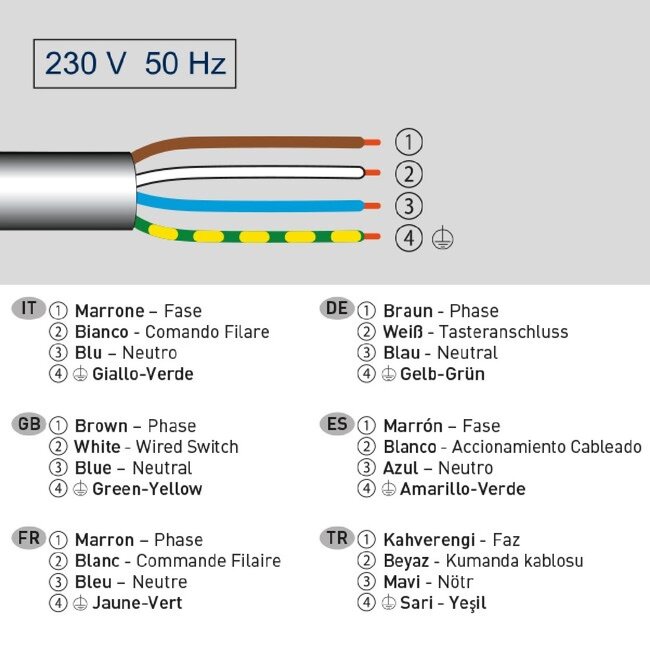

- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use

Type Cherubini Plug & Play RX Ø 45 tubular motor
- Cherubini PP RX 6/17 - 6 Nm - 17 rpm - 110 Watt - length 496 mm
- Cherubini PP RX 10/17 - 10 Nm - 17 rpm - 135 Watt - length 496 mm
- Cherubini PP RX 15/17 - 15 Nm - 17 rpm - 170 W - length 546 mm
- Cherubini PP RX 25/17 - 25 Nm - 17 rpm - 225 Watt - length 546 mm
- Cherubini PP RX 35/17 - 35 Nm - 17 rpm - 250 W - length 546 mm
