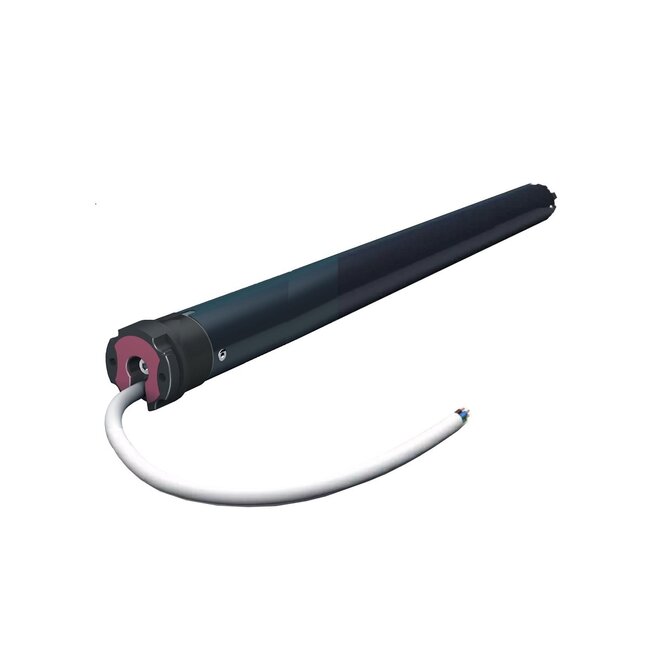

Cherubini Tronic RX Ø 35 tubular motor with receiver and electronic adjustment

Cherubini Tronic RX Ø 35 tubular motor

Tubular motor with electronic final adjustment, integrated receiver and possibility of connecting pulse push button. Settings are easily and accurately adjusted with a handheld transmitter, supported by encoder technology for accuracy and reliability. The system includes a secure Rolling Code decoder system, and offers both manual and semi-automatic settings for end positions. Additional features include frost protection, blocking detection with three sensitivity levels, and a special 'Supersensitivity' function for extra accurate blocking detection. Programming of the tubular motor can be done via handheld transmitter or a button.

- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- with integrated radio receiver 433 MHz
- memory for 15 handheld transmitters
- available in 5, 9 and 13 Nm
- speed from 10 to 21 Nm, depending on the force

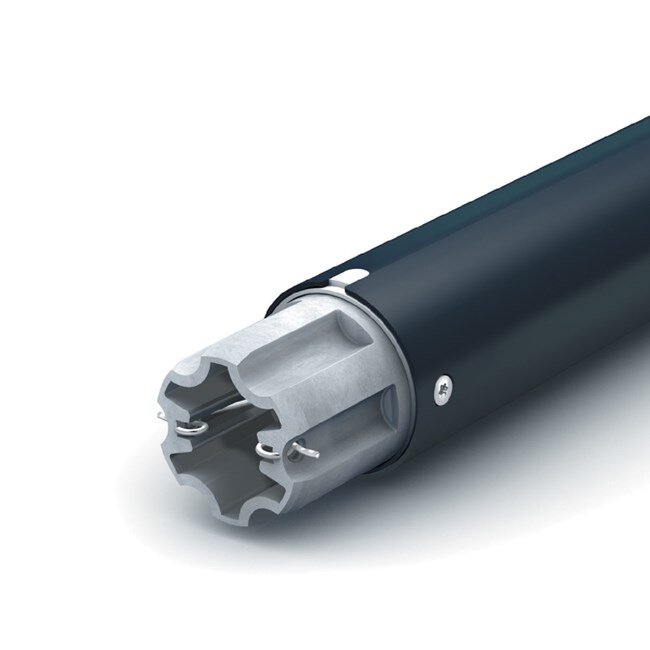

- motor head with adapter fits into the most popular motor supports on the market
- suitable for roller shutters, awnings and screens
- easily programmable handheld transmitter
- manual adjustment of the end positions with standard springs
- semi-automatic setting of the end positions with rigid connections
- frost protection and blocking detection when rigid connections are used
- Motor can be connected in parallel

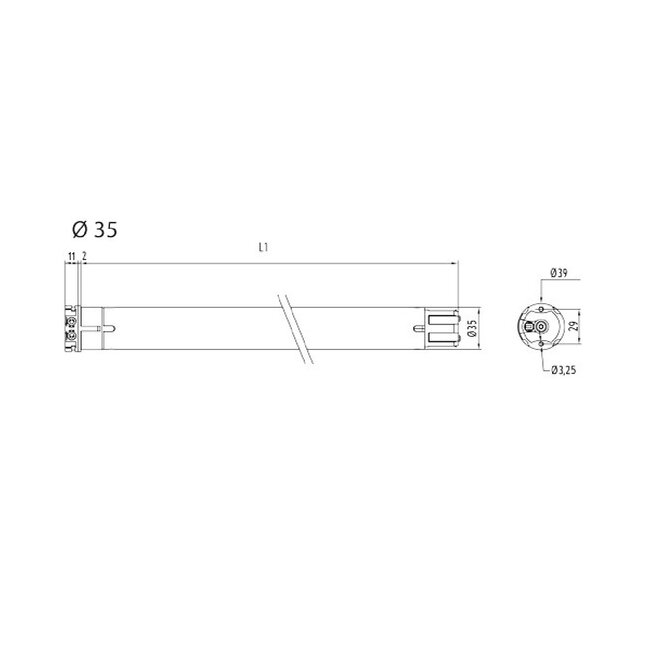

- tubular motor fits into pipe with a minimum inner diameter of 40 mm
- final adjustment capacity 35 revolutions
- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use

Type Cherubini Tronic RX Ø 35 tubular motor
- Cherubini Tronic RX 5/21 - 5 Nm - 21 rpm - 130 Watt - length 547 mm
- Cherubini Tronic RX 9/16 - 9 Nm - 16 rpm - 130 W - length 547 mm
- Cherubini Tronic RX 13/10 - 13 Nm - 10 rpm - 130 W - length 547 mm
